Rupal Metals, based in Delhi, India, stands out as a top manufacturer and supplier of high-quality Hastelloy Bars and Rods. They provide exceptional corrosion-resistant alloys suitable for a wide range of industrial applications. With a reputation for precision manufacturing and rigorous quality standards, Rupal Metals serves various sectors, including chemical processing, aerospace, marine, and power generation. Hastelloy alloys are celebrated for their remarkable resistance to both oxidizing and reducing environments, along with their impressive mechanical strength and durability at high temperatures. Rupal Metals guarantees timely delivery of Hastelloy bars and rods that comply with global specifications, ensuring reliable materials for critical industrial processes.
Hastelloy Bars and Rods are primarily made of Nickel, with different amounts of Chromium, Molybdenum, Iron, and other trace elements depending on the specific grade. This unique composition provides outstanding corrosion resistance against both oxidizing and reducing agents. In terms of mechanical properties, Hastelloy boasts tensile strength between 600 and 900 MPa, yield strength from 250 to 450 MPa, and elongation of up to 40%. These alloys also maintain excellent ductility, toughness, and stability across a wide range of temperatures, ensuring dependable performance in challenging chemical and thermal environments.
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|

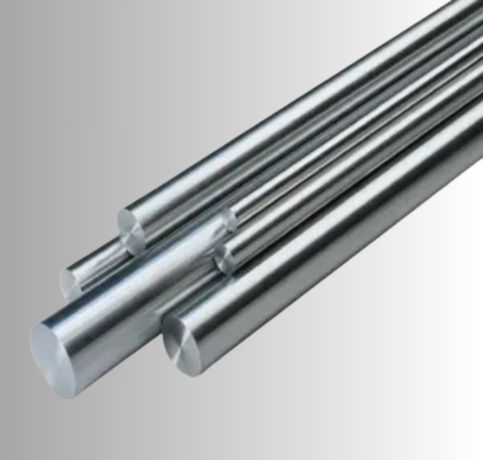

| Hastelloy Round Bar size | Diameter: 3-~800mm |

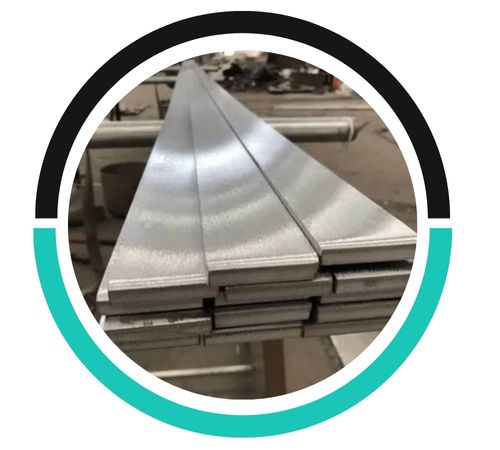

| Hastelloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hastelloy Bar Angle size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

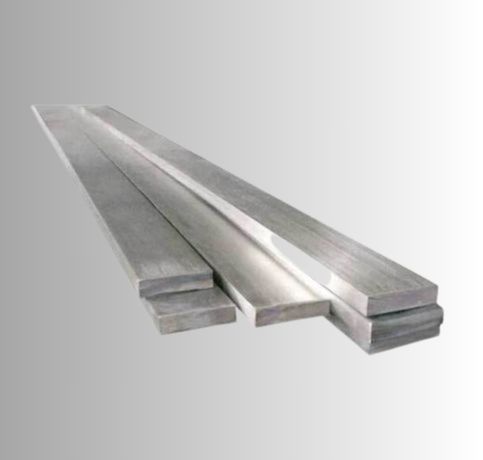

| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |

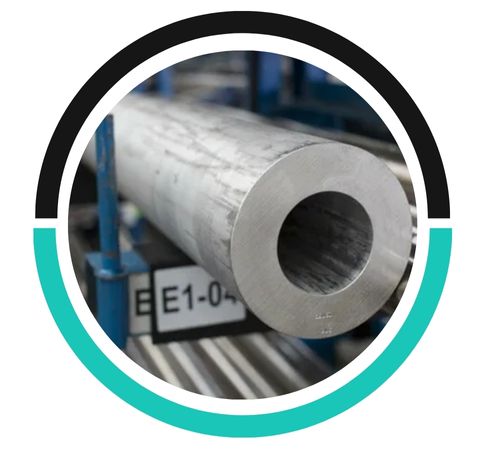

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Dimensions | Diameter / Height |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |

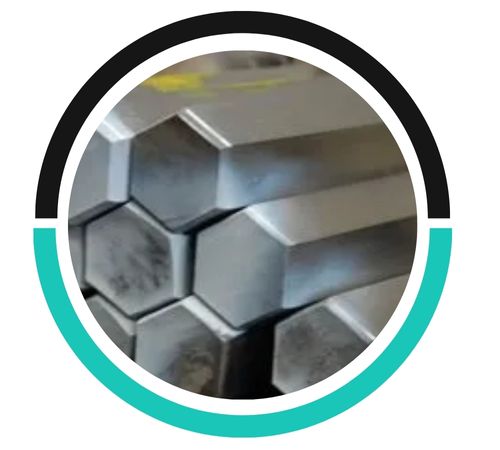

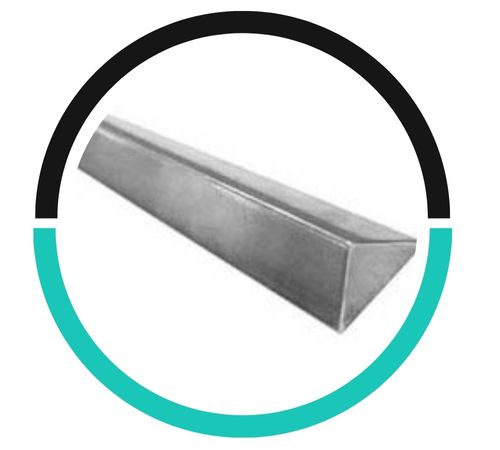

| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
| Grade | UNS | Cr | Mo | Fe | C≤ | Si≤ | Co≤ | Mn≤ | P≤ | S≤ |
| B2 | N10665 | 1.0max | 26.0-30.0 | 2.0max | 0.02 | 0.10 | 1.0 | 1.0 | 0.04 | 0.03 |
| B3 | N10675 | 1.0-3.0 | 27.0-32.0 | 1.0-3.0 | 0.01 | 0.10 | 3.0 | 3.0 | 0.03 | 0.01 |
| X | N06002 | 20.5-23.0 | 8.0-10.0 | 17.0-20.0 | 0.05-0.15 | 1.0 | 0.5-2.5 | 1.0 | 0.04 | 0.03 |
| C22 | N06022 | 20.0-22.5 | 12.5-14.5 | 3.0-6.0 | 0.015 | 0.08 | 2.5 | 0.5 | 0.02 | 0.02 |
| C2000 | N06200 | 22.0-24.0 | 15.0-17.0 | 3.0max | 0.01 | 0.08 | 2.0 | 0.5 | 0.025 | 0.01 |
| C276 | N10276 | 14.5-16.5 | 15.0-17.0 | 4.0-7.0 | 0.01 | 0.08 | 2.5 | 1.0 | 0.04 |
| Mechanical properties | Tensile, min, ksi[MPa] | Yield, min, ksi[MPa] | Elongation, %(min) |
| B2 | 110[760] | 51[350] | 40 |
| B3 | 110[760] | 51[350] | 40 |
| X | 100[690] | 40[276] | 35 |
| C22 | 100[690] | 45[310] | 45 |
| C2000 | 100[690] | 45[310] | 45 |
| C276 | 100[690] | 41[283] | 40 |
Yes, Hastelloy Bars are highly corrosion-resistant, making them ideal for harsh environments, including chemical processing and marine applications. They resist pitting, crevice corrosion, and stress corrosion cracking effectively.
Yes, Hastelloy Rods can be customized in size and length to meet specific industry requirements. Their versatility ensures suitability for diverse applications.
Hastelloy bars perform exceptionally in high-temperature environments, offering thermal stability, oxidation resistance, and strength retention. They are ideal for demanding applications like chemical processing and aerospace.
Hastelloy Bars and Rods are widely utilized in the chemical processing industry for reactors, heat exchangers, and pressure vessels that face aggressive acids and high temperatures. They play a crucial role in aerospace and power generation, particularly for turbine components and exhaust systems that demand durability and corrosion resistance. The marine and offshore sectors rely on Hastelloy for seawater handling equipment and corrosion-resistant fasteners. Additionally, these alloys are used in pollution control, pharmaceuticals, and nuclear reactors. Their combination of corrosion resistance and mechanical strength makes them indispensable in various demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
