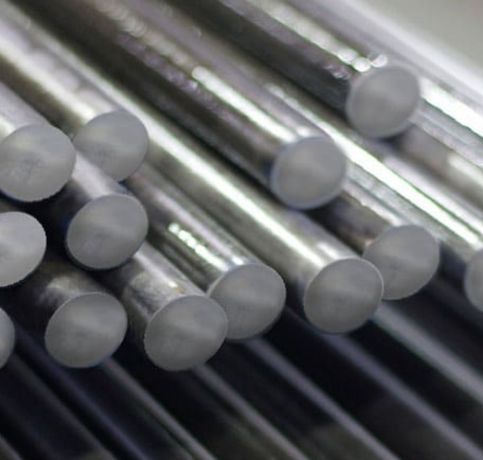

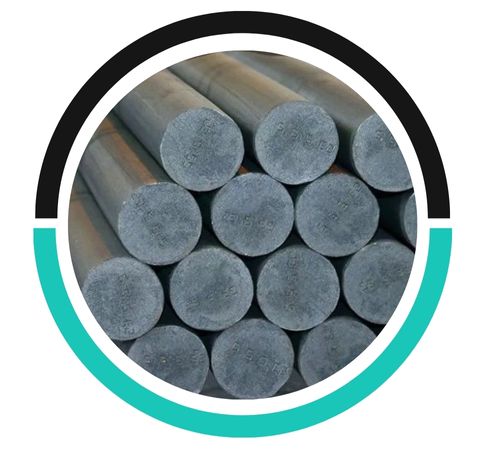

Reputable Delhi, India-based manufacturer and supplier Rupal Metals specialises in offering high-end alloy steel round bars that are precisely engineered for strength, durability, and precision. Our round bars, which are made with premium alloy steel and cutting-edge techniques, satisfy both domestic and international standards and are suitable for a variety of industrial uses. They are perfect for both general and heavy-duty applications and come in a variety of grades, sizes, and finishes. Rupal Metals provides dependable solutions supported by strict quality checks and on-time delivery to sectors including engineering, power generation, automotive, construction, and oil and gas.
Usually, steel grades alloyed with elements such as manganese, nickel, molybdenum, and chromium are used to make alloy steel round bars. AISI 4140, EN24, and EN19 are popular grades. These bars have outstanding yield strength between 400 and 850 MPa and tensile strength between 700 and 1100 MPa. Additionally, they have good fatigue strength, impact resistance, and ductility. Their mechanical performance is further improved by heat treatment. They are ideal for high-stress and wear-intensive applications due to their balanced chemical composition, which guarantees optimum performance, dimensional accuracy, and resistance to corrosion and deformation in harsh environments.
| Standard | ASTM A182, ASME SA182 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round bar Size | Diameter: 3-~800mm |
| Hex Bar Size | 2-100mm A/F |
| Square Bar Size | 4 to 100mm |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Element | C | Cr | Mn | Mo | P | S | Si | Ni |
| F5 | 0.15 Max | 4.0-6.0 | 0.30-0.60 | 0.44-0.65 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F1 | 0.15 Max | 3.0-5.0 | 0.30-0.60 | 0.40-0.50 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F22 | 0.05-0.15 | 2.00-2.50 | 0.30-0.60 | 0.90-1.10 | 0.035 Max | 0.040 Max | 0.50 Max | – |
| F91 | 0.08-0.12 | 8.0-9.5 | 0.30-0.60 | 0.85-1.05 | 0.020 Max | 0.010 Max | 0.20-0.50 | 0.40 Max |
| F9 | 0.15 Max | 8.0-10.0 | 0.30-0.60 | 0.90- 1.10 | 0.030 Max | 0.030 Max | 0.50- 1.00 | – |
| F11 | 0.10-0.20 | 1.00-1.50 | 0.40-0.65 | 0.44-0.65 | 0.025 Max | 0.040 Max | 0.50-0.80 | – |
| Grade | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min |
| F9 | 415 | 30 | 205 |
| F5 | 275 | 485 | 20 |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
| Diameter(Inch) | Bar Size | Diameter (millimeter) | Bar Size | Diameter (millimeter) | Bar Size | Diameter (millimeter2) | Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Alloy Steel Round Bars are manufactured through processes like casting, hot rolling, cold drawing, and machining. These methods shape the steel into round bars, ensuring desired strength, finish, and dimensional accuracy.
Yes, Alloy Steel Round Bars are customizable. They can be manufactured in various sizes, lengths, alloy compositions, and finishes to meet specific mechanical, thermal, and corrosion resistance requirements for different applications.
Industries that need materials that are strong, long-lasting, and machinable frequently use alloy steel round bars. They are employed in the manufacturing of crankshafts, axles, shafts, and gears in the automotive sector. They are used in the construction industry for reinforcements and structural supports. They are perfect for parts like drill collars, valves, and turbine parts in the oil and gas and power generation industries. They provide high-performance machine parts and fasteners to the engineering and machinery industries. For high-load, high-temperature, and critical engineering applications, their exceptional mechanical qualities, along with their exceptional machinability and weldability, make them indispensable.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
