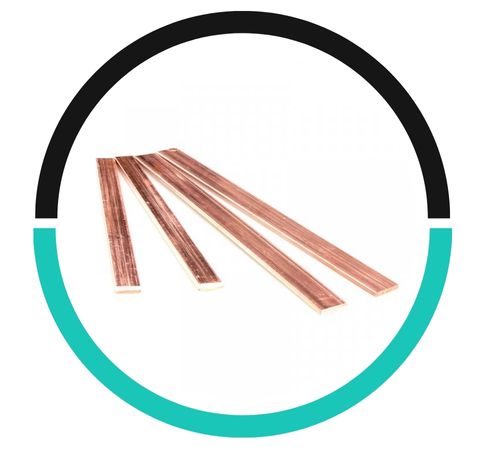

Rupal Metals, based in Delhi, India, stands out as a leading manufacturer and supplier of top-notch Copper Nickel Flat Bars. These bars are known for their impressive resistance to corrosion, especially in marine and industrial settings. Crafted with precision from high-quality raw materials, they find applications in various sectors, including shipbuilding, power generation, chemical processing, and desalination plants. Rupal Metals is committed to maintaining strict quality standards, ensuring that their Copper Nickel flat bars deliver consistent durability and optimal performance. With a focus on customer satisfaction and timely deliveries, Rupal Metals has become a trusted partner for corrosion-resistant metal solutions throughout India and beyond.
Rupal Metals, based in Delhi, India, stands out as a leading manufacturer and supplier of top-notch Copper Nickel Flat Bars. These bars are known for their impressive resistance to corrosion, especially in marine and industrial settings. Crafted with precision from high-quality raw materials, they find applications in various sectors, including shipbuilding, power generation, chemical processing, and desalination plants. Rupal Metals is committed to maintaining strict quality standards, ensuring that their Copper Nickel flat bars deliver consistent durability and optimal performance. With a focus on customer satisfaction and timely deliveries, Rupal Metals has become a trusted partner for corrosion-resistant metal solutions throughout India and beyond.
tandards: EN, DIN, JIS, ASTM, BS, ASME, AISI
Size: 5 mm to 200 mm
Length : 100 mm to 3660 mm Long
Specifications : ASTM / ASME SB 111
Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Finish : Bright, Polish & Black
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000 PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000 PSi |
| BD | Bright drawn | SRE | Slit rolled edge |
| CF | Cold finished | HRAP | Hot rolled annealed / pickled |
| CG | Centreless ground | HF | Hot finished |
| ST | Smooth turned | PR | Peeled / reeled |
| CD | Cold drawn | P | Polished |
| P&T | Peeled / turned | RT | Rough turned and peeled |
| Flat bar – metric sizes ( weights ) | |||
|---|---|---|---|
| Flat size | Standard length (metres) | KG’s / metre | Colour code |
| 16 x 3 | 6.0 | 0.38 | Blue |
| 13 x 3 | 6.0 | 0.31 | Blue |
| 13 x 5 | 6.0 | 0.46 | Orange |
| 16 x 5 | 6.0 | 0.64 | Orange |
| 20 x 3 | 6.0 | 0.48 | Blue |
| 16 x 8 | 6.0 | 1.03 | Red |
| 20 x 5 | 6.0 | 0.81 | Orange |
| 20 x 10 | 6.0 | 1.61 | Yellow |
| 20 x 6 | 6.0 | 0.97 | White |
| 25 x 3 | 6.0 | 0.60 | Blue |
| 25 x 6 | 6.0 | 1.21 | White |
| 10 x 3 | 6.0 | 0.24 | Blue |
| 25 x 5 | 6.0 | 1.01 | Orange |
| 25 x 8 | 6.0 | 1.61 | Red |
| 25 x 12 | 6.0 | 2.41 | Pink |
| 25 x 10 | 6.0 | 2.01 | Yellow |
| 32 x 3 | 6.0 | 0.77 | Blue |
| 32 x 6 | 6.0 | 1.55 | White |
| 32 x 5 | 6.0 | 1.29 | Orange |
| 32 x 8 | 6.0 | 2.06 | Red |
| 32 x 12 | 6.0 | 3.09 | Pink |
| 32 x 10 | 6.0 | 2.58 | Yellow |
| 40 x 3 | 6.0 | 0.97 | Blue |
| 40 x 6 | 6.0 | 1.93 | White |
| 40 x 5 | 6.0 | 1.61 | Orange |
| 40 x 8 | 6.0 | 2.58 | Red |
| 40 x 12 | 6.0 | 3.86 | Pink |
| 40 x 10 | 6.0 | 3.22 | Yellow |
| 40 x 16 | 6.0 | 5.15 | Grey |
| 50 x 3 | 6.0 | 1.21 | Blue |
| 40 x 20 | 6.0 | 6.14 | Green |
| 50 x 5 | 6.0 | 2.01 | Orange |
| 50 x 8 | 6.0 | 3.22 | Red |
| 50 x 6 | 6.0 | 2.41 | White |
| 50 x 10 | 6.0 | 4.02 | Yellow |
| 50 x 16 | 6.0 | 6.44 | Grey |
| 50 x 12 | 6.0 | 4.83 | Pink |
| 50 x 20 | 6.0 | 8.05 | Green |
| 65 x 3 | 6.0 | 1.57 | Blue |
| 50 x 25 | 6.0 | 10.1 | Purple |
| 65 x 5 | 6.0 | 2.62 | Orange |
| 65 x 8 | 6.0 | 4.18 | Red |
| 65 x 6 | 6.0 | 3.14 | White |
| 65 x 10 | 6.0 | 5.23 | Yellow |
| 65 x 16 | 6.0 | 8.37 | Grey |
| 65 x 12 | 6.0 | 6.28 | Pink |
| 65 x 20 | 6.0 | 10.5 | Green |
| 75 x 5 | 6.0 | 3.02 | Orange |
| 65 x 25 | 6.0 | 13.1 | Purple |
| 75 x 6 | 6.0 | 3.62 | White |
| 75 x 10 | 6.0 | 6.04 | Yellow |
| 75 x 8 | 6.0 | 4.83 | Red |
| 75 x 12 | 6.0 | 7.24 | Pink |
| 75 x 20 | 6.0 | 12.1 | Green |
| 75 x 16 | 6.0 | 9.66 | Grey |
| 75 x 25 | 6.0 | 15.1 | Purple |
| 90 x 5 | 6.0 | 3.62 | Orange |
| 75 x 40 | 6.0 | 24.1 | Yellow |
| 90 x 6 | 6.0 | 4.35 | White |
| 90 x 10 | 6.0 | 7.24 | Yellow |
| 90 x 8 | 6.0 | 5.79 | Red |
| 90 x 12 | 6.0 | 8.69 | Pink |
| 100 x 6 | 6.0 | 4.83 | White |
| 100 x 5 | 6.0 | 4.02 | Orange |
| 100 x 8 | 6.0 | 6.44 | Red |
| 100 x 12 | 6.0 | 9.66 | Pink |
| 100 x 10 | 6.0 | 8.05 | Yellow |
| 100 x 16 | 6.0 | 12.9 | Grey |
| 100 x 25 | 6.0 | 20.1 | Purple |
| 100 x 20 | 6.0 | 16.1 | Green |
| 100 x 50 | 6.0 | 40.2 | Green |
| 110 x 8 | 6.0 | 7.08 | Red |
| 110 x 6 | 6.0 | 5.31 | White |
| 110 x 10 | 6.0 | 8.85 | Yellow |
| 130 x 5 | 6.0 | 5.23 | Orange |
| 110 x 12 | 6.0 | 10.6 | Pink |
| 130 x 6 | 6.0 | 6.28 | White |
| 130 x 10 | 6.0 | 10.5 | Yellow |
| 130 x 8 | 6.0 | 8.37 | Red |
| 130 x 12 | 6.0 | 12.6 | Pink |
| 130 x 20 | 6.0 | 20.9 | Green |
| 130 x 16 | 6.0 | 16.7 | Grey |
| 130 x 25 | 6.0 | 26.2 | Purple |
| 150 x 6 | 6.0 | 7.24 | White |
| 150 x 5 | 6.0 | 6.04 | Orange |
| 150 x 8 | 6.0 | 9.66 | Red |
| 150 x 12 | 6.0 | 14.5 | Pink |
| 150 x 10 | 6.0 | 12.1 | Yellow |
| 150 x 16 | 6.0 | 19.3 | Grey |
| 150 x 25 | 6.0 | 30.1 | Purple |
| 150 x 20 | 6.0 | 24.1 | Green |
| 150 x 50 | 6.0 | 60.4 | Green |
| 180 x 6 | 6.0 | 8.69 | White |
| 180 x 5 | 6.0 | 7.24 | Orange |
| 180 x 10 | 6.0 | 14.5 | Yellow |
| 180 x 16 | 6.0 | 23.2 | Grey |
| 180 x 12 | 6.0 | 17.4 | Pink |
| 180 x 20 | 6.0 | 29.0 | Green |
| 200 x 6 | 6.0 | 9.66 | White |
| 180 x 25 | 6.0 | 36.2 | Purple |
| 200 x 8 | 6.0 | 12.9 | Red |
| 200 x 12 | 6.0 | 19.3 | Pink |
| 200 x 10 | 6.0 | 16.1 | Yellow |
| 200 x 16 | 6.0 | 25.7 | Grey |
| 200 x 25 | 6.0 | 40.3 | Purple |
| 200 x 20 | 6.0 | 32.2 | Green |
| 250 x 6 | 6.0 | 12.1 | White |
| 250 x 10 | 6.0 | 20.1 | Yellow |
| 250 x 8 | 6.0 | 16.1 | Red |
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, Copper Nickel Flat Bars are customizable. They can be manufactured to specific dimensions, thicknesses, and lengths based on customer requirements. Additionally, they can be tailored for particular applications, such as varying alloy compositions or surface finishes, to meet performance needs in industries like marine, chemical, and power generation.
Copper Nickel Flat Bars are extensively utilized in marine applications, such as ship hulls, seawater piping, heat exchangers, and condenser plates, thanks to their outstanding resistance to corrosion and marine biofouling. In the power generation and desalination sectors, they are essential for components that demand high thermal conductivity and erosion resistance. These flat bars are also perfect for offshore oil and gas platforms, chemical processing equipment, and architectural projects that require both strength and corrosion resistance. Their versatility, formability, and long service life make Copper Nickel flat bars an excellent choice for demanding environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
