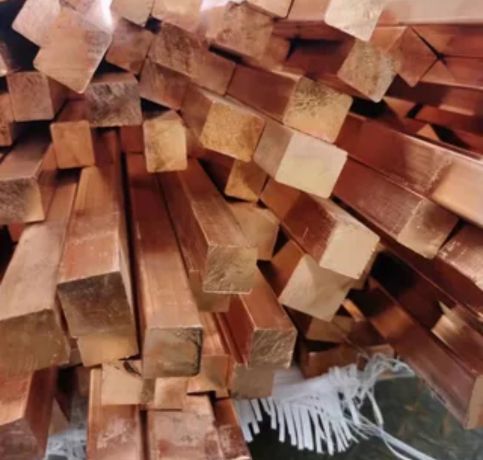

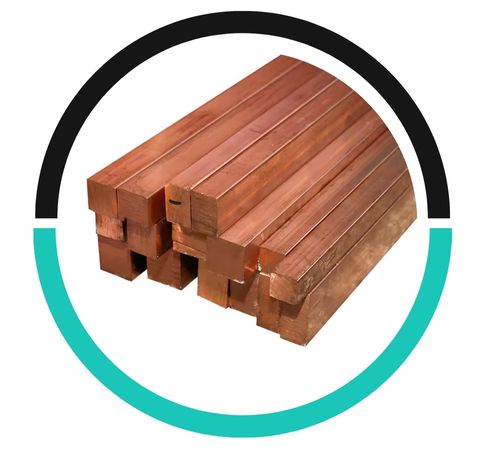

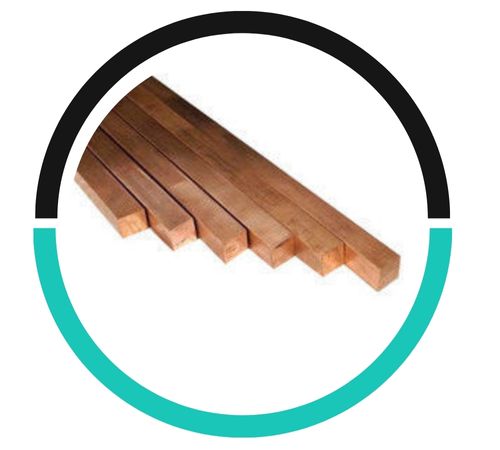

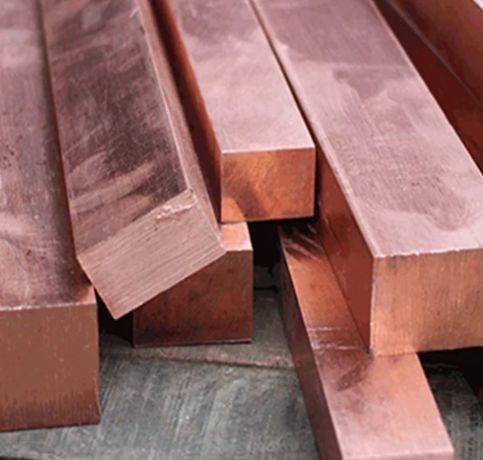

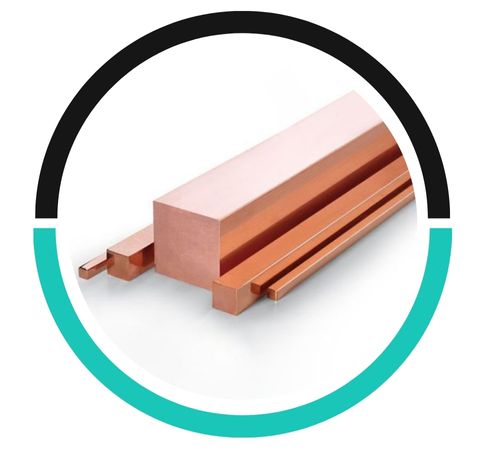

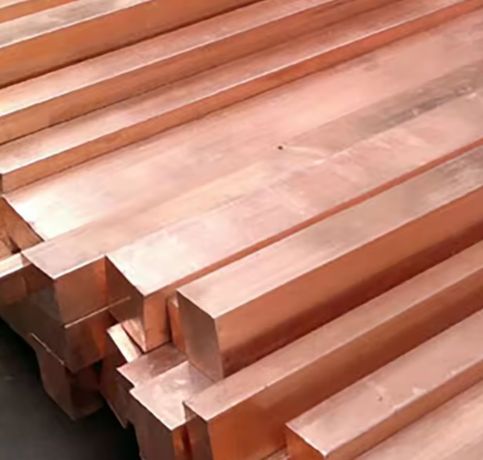

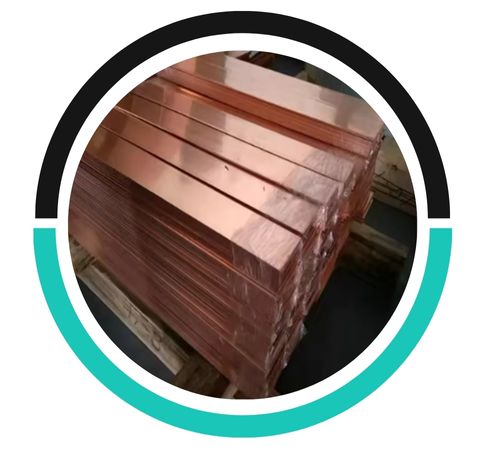

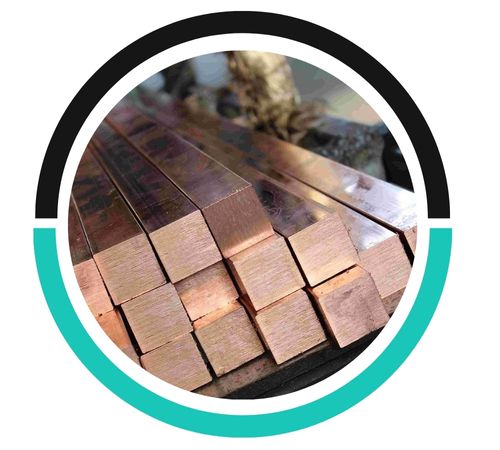

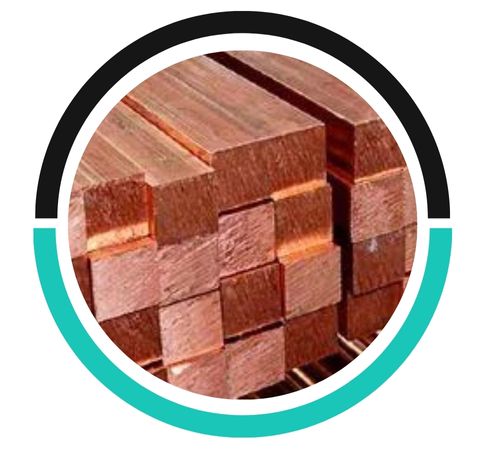

Rupal Metals, located in Delhi, India, stands out as a top manufacturer and supplier of high-quality Copper Nickel Square Bars. These bars are celebrated for their durability, resistance to corrosion, and outstanding performance in both marine and industrial settings. With a strong focus on precision and adherence to global quality standards, Rupal Metals provides Copper Nickel bars that serve a variety of industries, including shipbuilding, power generation, and chemical processing. Crafted using advanced techniques and premium raw materials, these square bars ensure dimensional accuracy, strength, and longevity, making Rupal Metals a reliable partner for clients in need of effective Copper Nickel solutions across various engineering applications.
Copper Nickel Square Bars typically come in two standard grades—Cu-Ni 90/10 (90% copper, 10% nickel) and Cu-Ni 70/30 (70% copper, 30% nickel)—with minor additions of iron and manganese to enhance strength and corrosion resistance. These bars are known for their excellent resistance to seawater, erosion, and stress corrosion cracking. Their mechanical properties include a tensile strength ranging from 275 to 520 MPa, yield strength between 105 and 260 MPa, and an elongation of up to 30%. Additionally, Copper Nickel square bars exhibit good weldability, ductility, and stability under high thermal and mechanical loads, making them ideal for demanding service conditions.
| Standard | ASTM B111, ASME SB111 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000 PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000 PSi |
| BD | Bright drawn | SRE | Slit rolled edge |
| CF | Cold finished | HRAP | Hot rolled annealed / pickled |
| CG | Centreless ground | HF | Hot finished |
| ST | Smooth turned | PR | Peeled / reeled |
| CD | Cold drawn | P | Polished |
| P&T | Peeled / turned | RT | Rough turned and peeled |
| Metric | US Rods | ASTM/ Canadian | Japanese | ||||
|---|---|---|---|---|---|---|---|
| Rods Size | Diam. (mm) | Rods Size | Diam. (Inch) | Rods Size | Diam. (mm2) | Rods Size | Diam. (mm) |
| 5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
| 5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
| 6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
| 7 | 7 | #5 | 0.600 | 25M | 500 | 16 | 16 |
| 8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
| 9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
| 10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
| 11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
| 12 | 12 | #10 | 1.250 | 32 | 32 | ||
| 14 | 14 | #11 | 1.375 | 35 | 35 | ||
| 16 | 16 | #12 | 1.500 | 38 | 38 | ||
| 18 | 18 | #13 | 1.600 | 41 | 41 | ||
| 20 | 20 | #14 | 1.750 | 44 | 44 | ||
| 22 | 22 | #15 | 1.875 | 48 | 48 | ||
| 25 | 25 | #16 | 2.000 | 51 | 51 | ||
| 28 | 28 | #18 | 2.250 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, Copper Nickel Square Bars are customizable. They can be tailored in terms of size, shape, length, and specific alloy composition to meet the precise requirements of various industrial applications.
Copper Nickel Square Bars find extensive applications in marine engineering, particularly for constructing seawater piping systems, heat exchangers, pump components, and condenser tubing, thanks to their remarkable resistance to saltwater corrosion and biofouling. In the power and desalination industries, these bars are utilized in equipment designed to withstand high temperatures and pressures. Their excellent formability and mechanical strength also make them suitable for chemical processing, offshore oil rigs, and shipbuilding projects. Furthermore, they are employed in architectural and decorative applications, showcasing their versatility across various fields.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
