Rupal Metals has built a solid reputation in the manufacturing and supply of high-performance alloys, particularly Inconel 792 Bars and Rods, right from their facility in Delhi, India. They’re well-known for their precision-engineered products and unwavering commitment to quality, serving industries that require exceptional strength and thermal stability. Inconel 792 is a nickel-based superalloy crafted specifically for high-temperature applications, like turbine engines and aerospace components. With state-of-the-art infrastructure, a team of skilled professionals, and strict adherence to global standards, Rupal Metals guarantees that their Inconel 792 products meet the demanding needs of clients in aerospace, energy, and industrial sectors.
Inconel 792 Bars and Rods are mainly made up of Nickel (around 60%), with notable amounts of Chromium (approximately 12%), Aluminum (about 4%), Titanium (around 4%), Molybdenum (around 2%), and trace elements of Zirconium and Carbon. This unique blend boosts oxidation resistance and strength at high temperatures. The alloy showcases impressive creep and rupture strength, with tensile strength ranging from 880 to 1050 MPa. Its hardness and resistance to thermal fatigue make it perfect for environments that exceed 1000°C. Inconel 792 maintains its structural integrity and resists scaling, oxidation, and thermal shock even under prolonged exposure to high heat.
| Specifications | ASTM B116 / ASTM SB116 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | 5 mm to 500 mm |
| Diameter | 0.1 mm to 100 mm |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 100 mm To 3000 mm Long & Above |

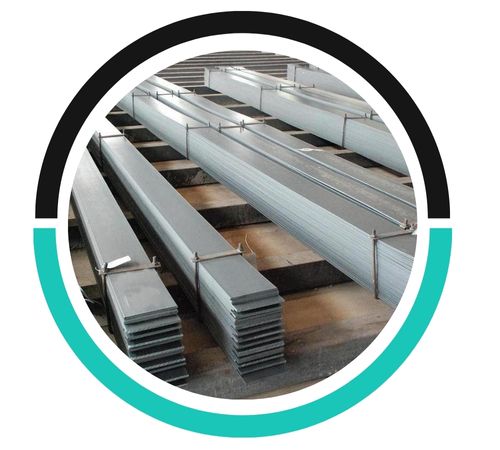

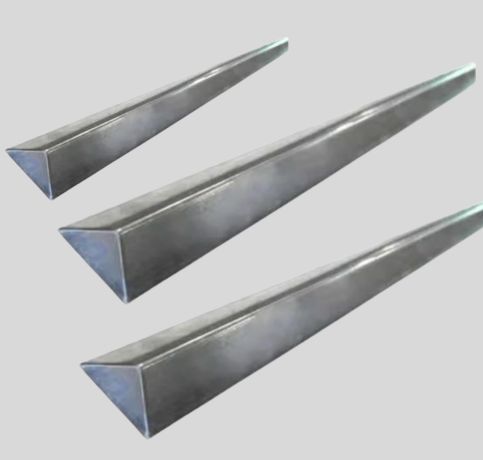

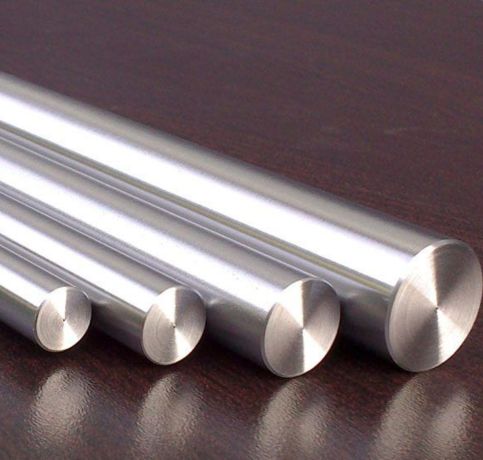

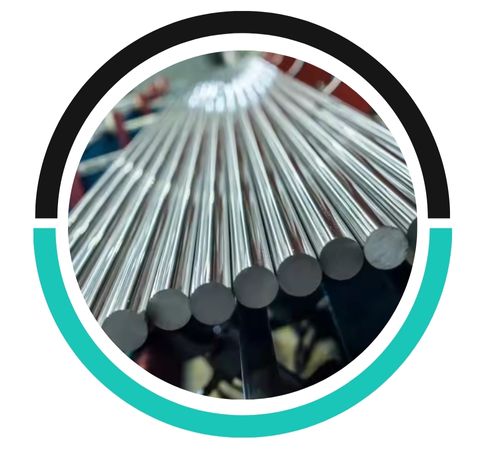

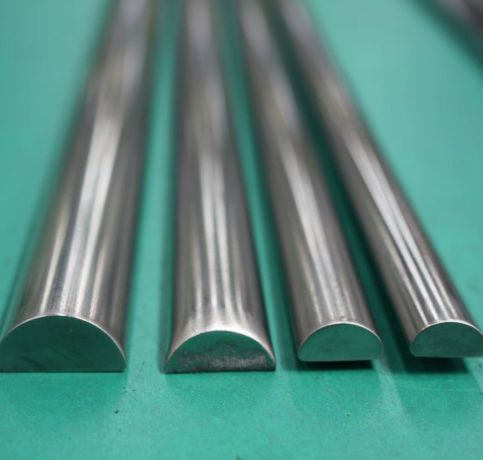

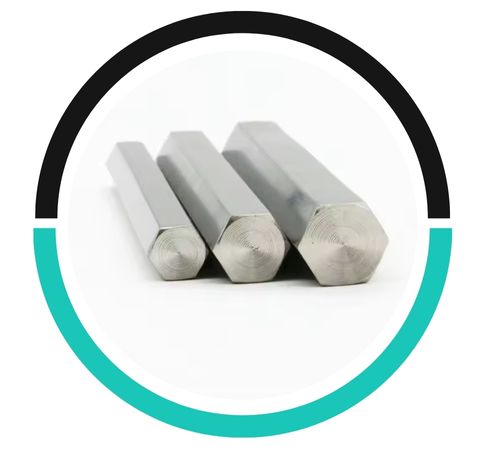

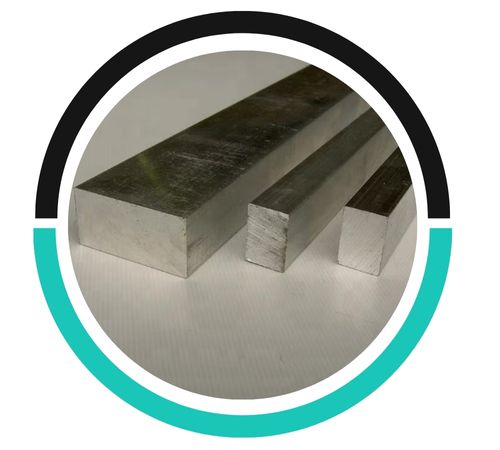

| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Element | Composition (%) |
| Nickel (Ni) | 60.0 – 65.0 |
| Chromium (Cr) | 12.0 – 14.0 |
| Cobalt (Co) | 9.0 – 10.0 |
| Aluminum (Al) | 3.0 – 4.5 |
| Titanium (Ti) | 3.5 – 4.5 |
| Molybdenum (Mo) | 1.5 – 2.5 |
| Tantalum (Ta) | 0.50 – 1.50 |
| Zirconium (Zr) | 0.02 – 0.15 |
| Boron (B) | 0.010 – 0.020 |
| Carbon (C) | 0.12 – 0.20 |
| Silicon (Si) | ≤ 0.50 |
| Manganese (Mn) | ≤ 0.50 |
| Iron (Fe) | ≤ 3.0 |
| Property | Value |
| Tensile Strength | 1000 – 1400 MPa |
| Yield Strength (0.2%) | 800 – 1100 MPa |
| Elongation | 5 – 15% |
| Hardness | 350 – 450 HB |
| Impact Strength | Good at elevated temperatures |
| Property | Value |
| Density | 8.25 g/cm³ |
| Melting Range | 1260 – 1340°C |
| Thermal Conductivity | 11.2 W/m·K at 20°C |
| Specific Heat Capacity | 0.410 J/g·K at 20°C |
| Electrical Resistivity | 1.22 μΩ·m at 20°C |
| Coefficient of Thermal Expansion | 13.3 x 10⁻⁶ /°C (20-1000°C) |
Yes, Inconel 792 bars and rods are designed for high-temperature applications, providing excellent strength, oxidation resistance, and thermal stability, making them ideal for extreme heat environments.
Yes, Inconel 792 bars and rods are recyclable. Their high nickel and chromium content allows them to be efficiently reused in various industries, reducing waste and promoting sustainability.
Inconel 792 bars and rods generally do not require additional corrosion protection coatings due to their inherent resistance to oxidation and corrosion, especially in high-temperature and harsh environments.
Inconel 792 Bars and Rods are tailor-made for high-temperature and high-stress environments. They find extensive use in gas turbines, aircraft engine components, turbine blades, vanes, and other parts that undergo extreme thermal cycling. Thanks to their oxidation resistance and structural reliability at elevated temperatures, they’re also utilized in industrial heating systems, combustion liners, and aerospace propulsion systems. The alloy’s durability and performance under stress make it a top choice for high-speed aerospace and marine applications, ensuring safety and longevity in demanding conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
