Rupal Metals stands out as a top manufacturer and supplier of high-quality stainless steel products, proudly based in Delhi, India. We focus on crafting premium Stainless Steel 904L Rectangular Bars, celebrated for their remarkable corrosion resistance and mechanical strength. Designed to meet the rigorous demands of today’s industries, our 904L rectangular bars are perfect for chemical, marine, and high-temperature applications. At Rupal Metals, we follow international quality standards, delivering precision-engineered products that promise durability and long-lasting performance. Our dedication to innovation and customer satisfaction makes us a reliable partner in the stainless steel sector.

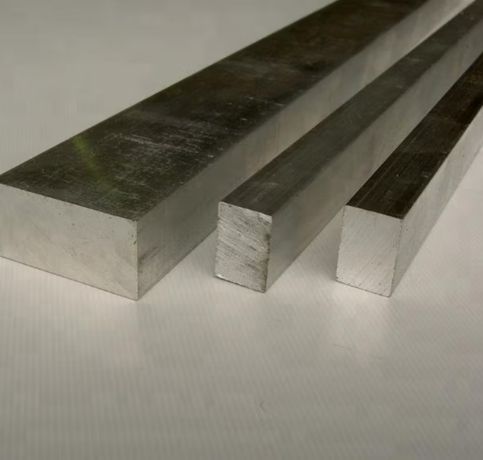

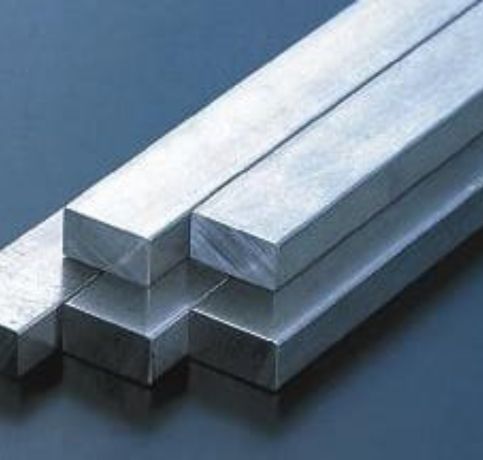

Stainless Steel 904L Rectangular Bars are made from austenitic stainless steel with a low carbon content. The typical chemical makeup features 19-23% chromium, 23-28% nickel, 4-5% molybdenum, 1-2% copper, along with trace amounts of carbon, manganese, and silicon. This unique blend boosts resistance to harsh acids and chloride stress corrosion. The bars boast impressive mechanical properties, with a tensile strength of about 490 MPa, a yield strength around 220 MPa, and an elongation of up to 35%. Their outstanding toughness, even in cryogenic conditions, makes them perfect for critical structural applications in challenging industrial settings.
| Standards | ASTM / ASME |
| Designation | B 649, SB 649 |
| Grade | 904L Rectangular Bars and Rods 904L Rectangular Bars and Rods: ASTM B 649, ASME SB 649 |
|
EN/DIN |
1.4539
X1NiCrMoCu25-20-5 |
|---|---|
|
AFNOR |
Z2CNDU25.20 |
|
UNS |
N08904 |
|
AISI |
904L / F904L |
|
BS |
904S13 |
|
SS |
2562 |
|
OTHER |
ASTM A182
ASTM A262
ASTM A479
ASTM B649 / ASME SB649
DIN 17440
EN10088-3
EN10272
NACE MR01-75 / ISO 15156
SEW 400-VdTÜV421 |
|
BRANDS |
URANUS B6™
VLX904™
AL-904L™
CRONIFER 1925™
2RK65™ |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19.0-23.0 | 4.0-5.0 max | 23.00 – 28.00 | 1.0-2.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35% |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Choose Stainless Steel 904L Rectangular Bars based on the specific corrosion resistance and strength requirements of your application. Consider factors such as temperature, chemical exposure, and mechanical stresses to ensure optimal performance.
Stainless Steel 904L Rectangular Bars are available in various sizes, typically ranging from 10mm to 100mm in thickness and widths up to 200mm, with customizable lengths. Specific dimensions can be tailored to meet project requirements based on customer needs.
Yes, Stainless Steel 904L Rectangular Bars can be used for underground applications due to their exceptional corrosion resistance, particularly in environments with high chloride content. Their durability ensures reliable performance in harsh, buried conditions.
Stainless Steel 904L Rectangular Bars find extensive use in industries that demand high corrosion resistance and structural reliability. They are particularly suited for chemical processing plants, marine construction, pharmaceutical manufacturing, pulp and paper industries, and offshore oil drilling. Their exceptional resistance to sulfuric, phosphoric, and acetic acids makes them ideal for heat exchangers, tank fabrication, and pollution control systems. These bars are also utilized in structural frameworks, support systems, and custom fabrication projects. Thanks to their excellent weldability, they can be easily integrated into various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
