Rupal Metals, a prominent stainless steel manufacturer and supplier located in Delhi, India, is dedicated to providing top-notch Stainless Steel 310 Forgings tailored for high-temperature and corrosive industrial settings. Crafted with an emphasis on strength, thermal stability, and oxidation resistance, our SS 310 forgings find extensive use in power generation, petrochemical, furnace, and heat treatment sectors. With a commitment to precision and adherence to global standards, Rupal Metals guarantees outstanding product performance and dimensional accuracy. We strive to deliver durable, cost-effective forging solutions that meet the rigorous demands of clients across various high-performance industries.
Stainless Steel 310 Forgings are made up of about 24–26% chromium and 19–22% nickel, featuring low carbon content along with trace elements like manganese, silicon, and phosphorus. This unique blend provides remarkable high-temperature strength and oxidation resistance, even up to 1100°C. SS 310 forgings boast a tensile strength of around 520 MPa, a yield strength of approximately 205 MPa, and an elongation of up to 40%. The alloy is non-magnetic when annealed, maintains excellent mechanical properties in thermal cycling conditions, and offers great weldability, making it perfect for forged components that endure intense heat and stress.
| Standard | ASTM A182, ASME SA182 |
| Specification | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs. |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs. |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs. |

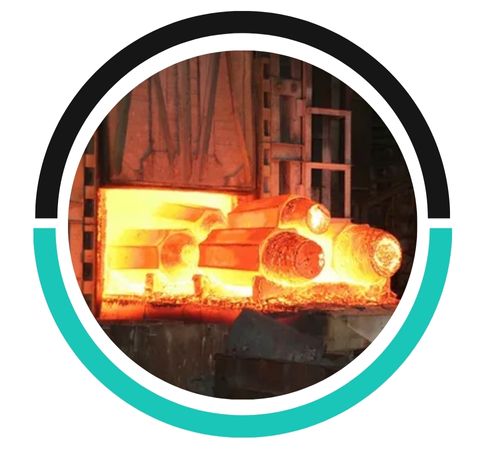

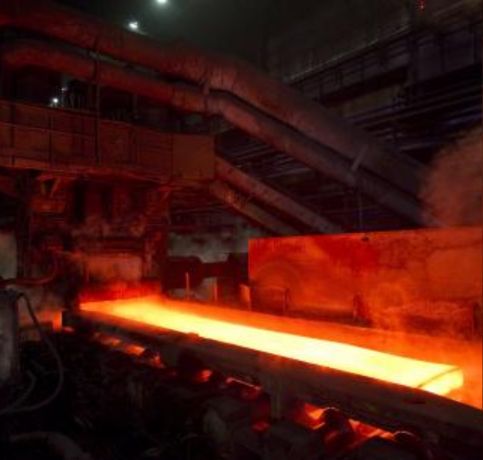

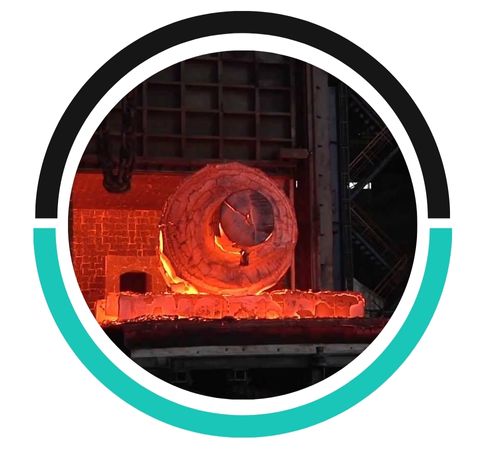

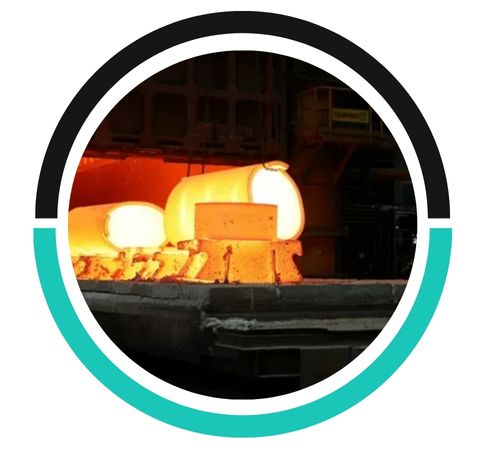

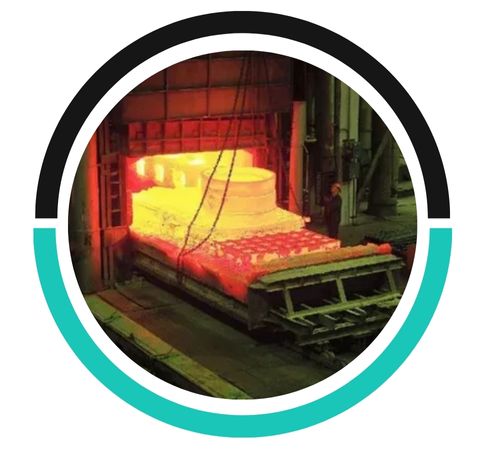

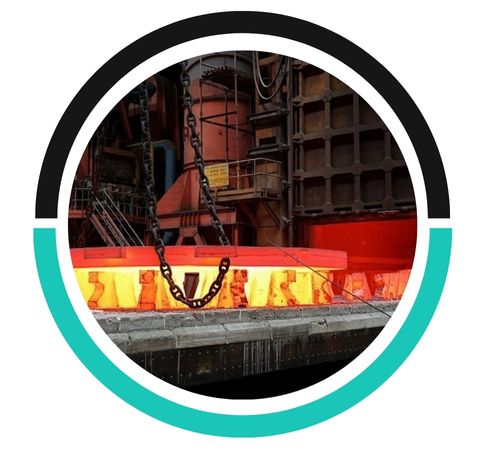

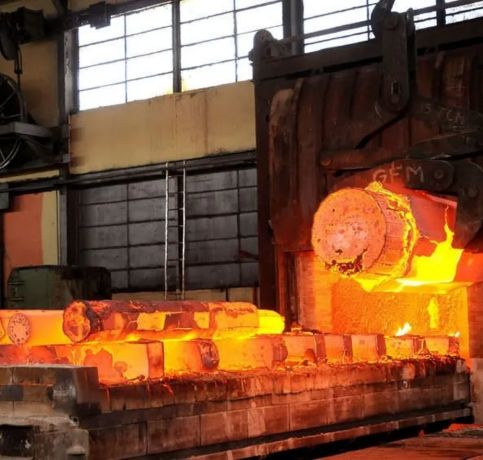

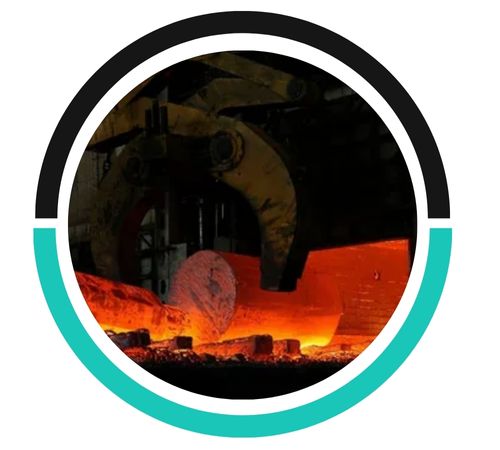

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310 | 0.015 max | 2 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 | 19.00 – 21.00 | 54.7 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
Temperature control during forging of Stainless Steel 310 ensures proper grain structure, enhancing its strength and resistance to oxidation. It also minimizes the risk of defects, ensuring consistent quality and performance in high-temperature applications.
Assess the forging strength of Stainless Steel 310 for aerospace by conducting tensile, fatigue, and hardness tests, ensuring uniform grain structure and high-temperature resistance.
Stainless Steel 310 Forgings require minimal maintenance, typically involving regular cleaning to prevent buildup and periodic inspections for signs of wear or corrosion, especially in high-temperature environments.
Stainless Steel 310 Forgings are extensively utilized in industries that require exceptional performance in extreme heat and corrosive environments. They are commonly found in furnace fixtures, burner components, heat exchangers, reformer tubes, and flanges within thermal processing systems. In the petrochemical and power generation sectors, 310 forgings are essential for boiler parts, turbine components, and exhaust assemblies. Their outstanding oxidation resistance and structural integrity make them ideal for continuous high-temperature applications. Additionally, SS 310 forgings are also used in cement kilns, showcasing their versatility and reliability in demanding conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
