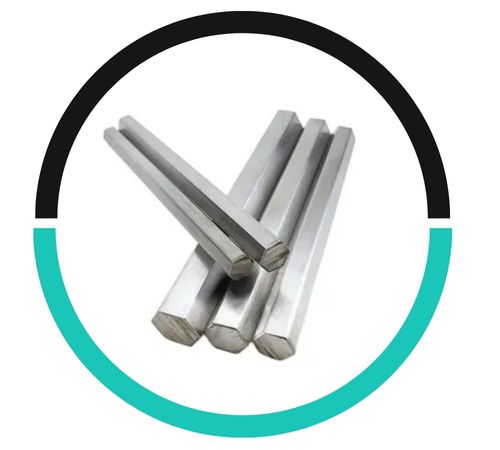

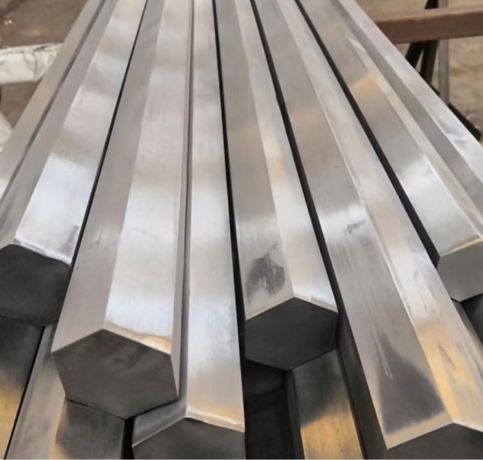

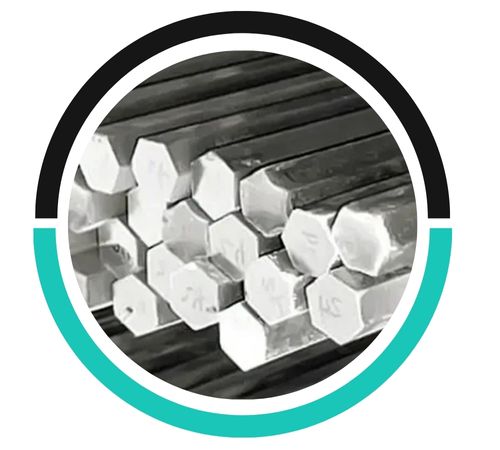

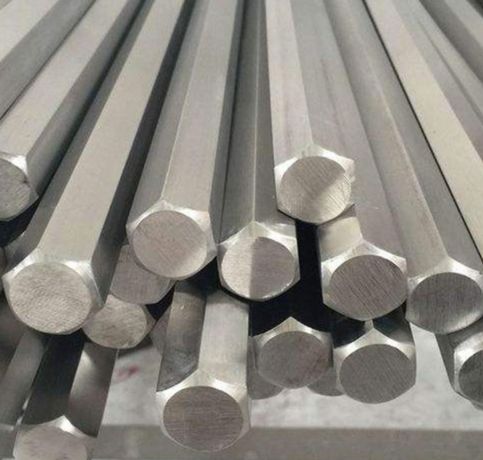

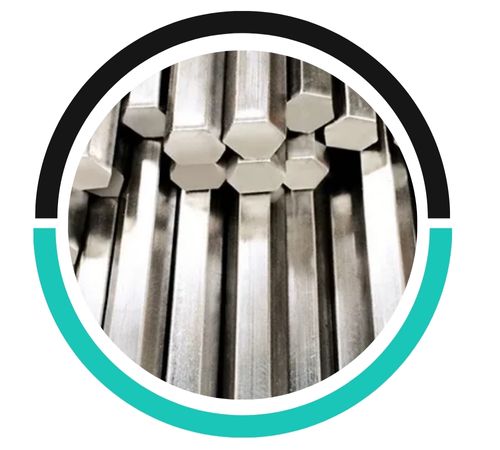

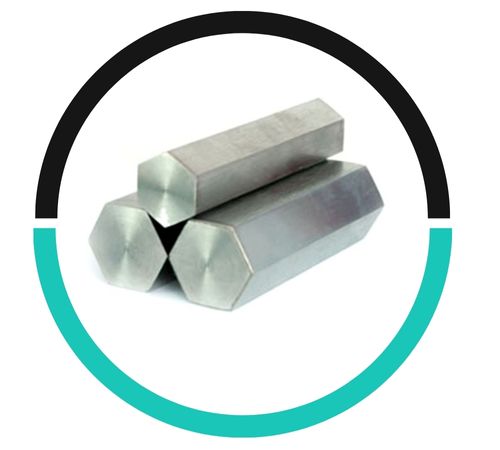

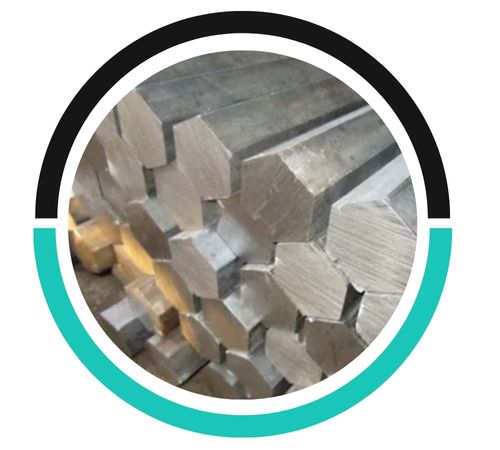

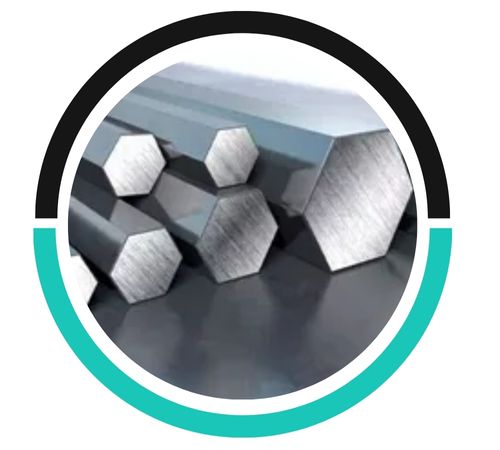

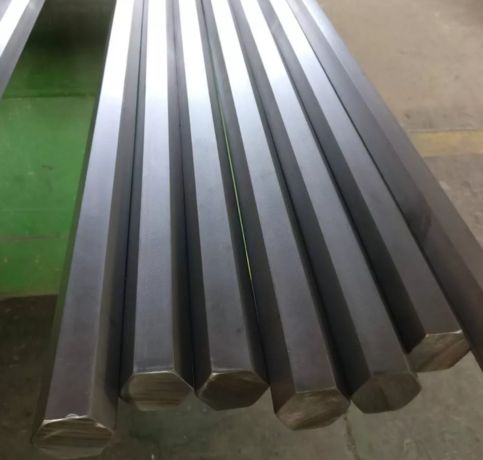

Stainless Steel 17-7 PH Hex Bars and Rods are manufactured and supplied by Rupal Metals, a reputable company in Delhi, India. Rupal Metals produces premium stainless steel products that are suited to the exacting requirements of diverse industries, with a strong emphasis on quality and innovation. Stainless Steel 17-7 PH Hex Bars/Rods are renowned for their exceptional corrosion performance, high strength, and outstanding fatigue resistance. These bars are perfect for chemical, marine, and aerospace applications because they are designed with the use of advanced manufacturing techniques. Rupal Metals is dedicated to providing dependable service, prompt delivery, and satisfied customers everywhere.
Chromium (16–18%), Nickel (6.5–7.75%), Aluminium (0.75–1.5%), and very little carbon (maximum 0.09%) make up stainless steel 17-7 PH Hex Bars/Rods. Tiny amounts of manganese and silicon are also present. Excellent corrosion resistance and mechanical strength are provided by this precipitation-hardened alloy. It has a yield strength of about 1170 MPa and a tensile strength of up to 1380 MPa when heat-treated. The alloy is appropriate for precision and high-performance engineering components because of its good ductility, high fatigue resistance, and stability at high temperatures.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-7 PH | .09 | – | 16.0 – 18.0 | – | Bal | 1.0 | 6.50 – 7.75 | .04 | 0.04 | 1.0 max |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-7 PH | 170000 psi | 140000 psi | 6% | 38 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-7 PH | – | S17700 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Common challenges with Stainless Steel 17-7 PH Hex Bar include difficulty in machining due to its hardness, sensitivity to stress corrosion cracking, and the need for precise heat treatment to achieve optimal properties.
Stainless Steel 17-4 PH Hex Bar and Rod should be stored in a dry, clean environment, away from moisture and corrosive substances. Ensure proper ventilation and avoid direct contact with chemicals or humidity.
Yes, Stainless Steel 17-7 PH Hex Bar and Rod are fully recyclable. Stainless steel can be melted down and reused, making it an environmentally friendly material for sustainable manufacturing processes.
Because of their exceptional corrosion resistance and high strength-to-weight ratio, stainless steel 17-7 PH Hex Bars and Rods are widely used in the automotive, petrochemical, aerospace, and defence industries. They are perfect for creating high-stress parts like diaphragms, washers, and springs. The material is appropriate for load-bearing and structural applications in aircraft and missile systems due to its capacity to maintain properties following heat treatment. Furthermore, 17-7 PH is utilised in oil and gas processing facilities, medical equipment, and marine hardware where strength and dimensional stability are essential. Its versatility in forming and machining increases its usefulness in a range of industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
