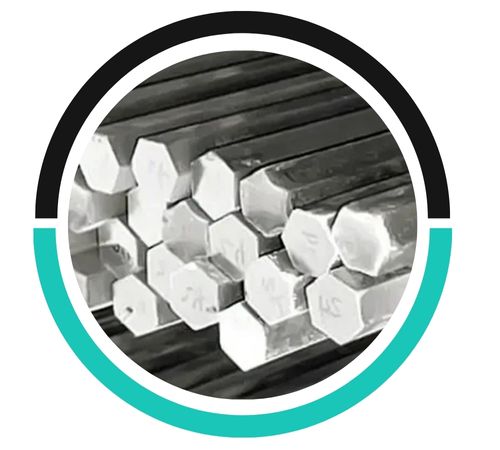

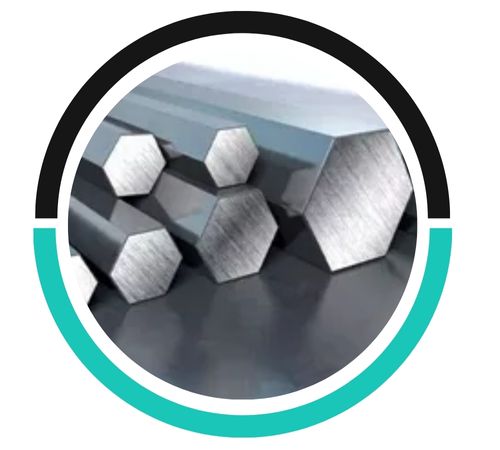

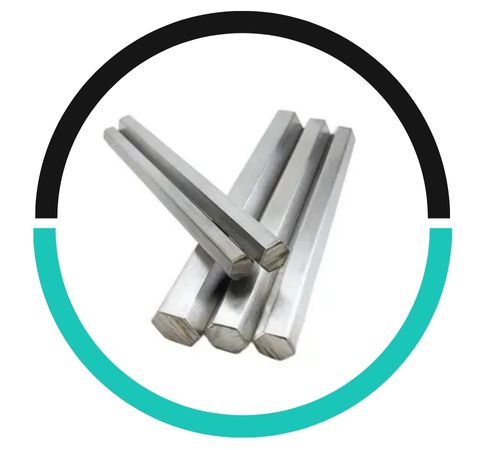

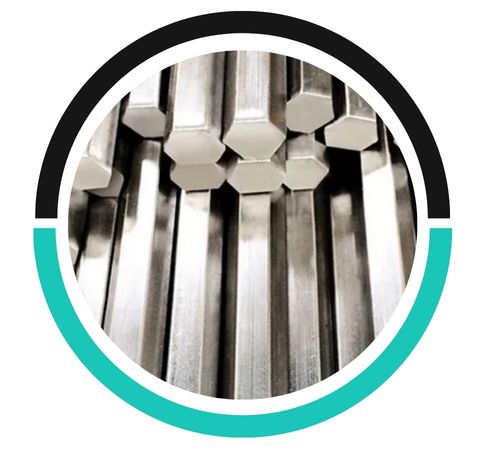

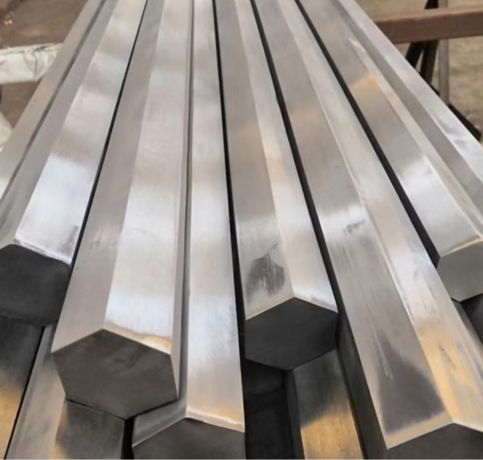

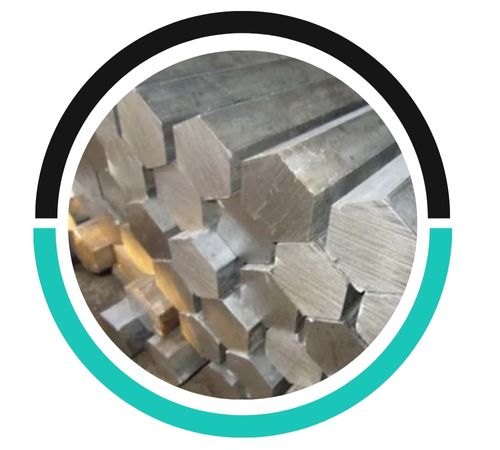

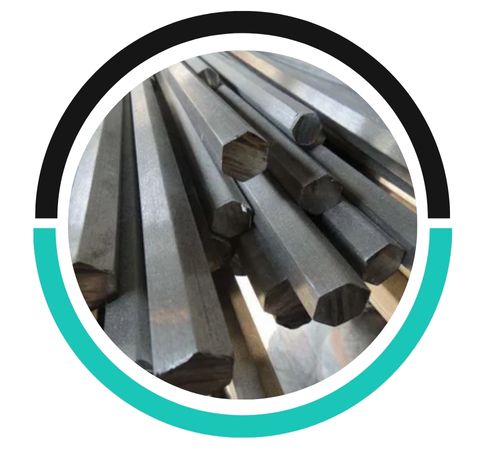

Rupal Metals, being one of the prominent Delhi-based manufacturers and suppliers, deals in top-class stainless steel products such as the durable Stainless Steel 202 Hex Bar/Rod. Well known for its precision-engineered products and compliance with global quality standards, Rupal Metals supplies a vast range of industries with dependable metal products. The Stainless Steel 202 Hex Bar/Rod supplied by Rupal Metals comprises superior strength, durability, and corrosion resistance, which makes it suitable for many structural and industrial applications. Being dedicated to excellence and customer satisfaction, Rupal Metals provides timely delivery and competitive prices for stainless steel needs.
Stainless Steel 202 Hex Bar/Rod contains mainly chromium (17–19%), nickel (4–6%), and manganese (7.5–10%), with trace amounts of carbon, phosphorus, sulfur, and nitrogen. The material is relatively tough and ductile, with a tensile strength of about 515 MPa, yield strength of 275 MPa, and an elongation of around 40%. This grade is moderately resistant to corrosion and can be used in mildly corrosive environments. Blending economic value with mechanical strength, Stainless Steel 202 Hex Bar/Rod finds usage in both decorative and structural operations.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 202 | ≤ 0.15 | 17- 19 | 7.50-10 | 4-6 | ≤ 0.060 | ≤ 0.030 | ≤ 1 |
| Element | Tensile Strength | Yield Strength | Elongation |
| SS 202 | 515 MPa | 275 MPa | 40% |
| Element | Density, lb/in3 | Modulus of Elasticity, psi | Linear Expansion, 68-212°F, /°F | Thermal Conductivity, Btu/ft hr°F | Heat Capacity, Btu/lb°F | Electrical Resistivity, Ω-inch |
| SS 202 | 0.285 | 29 x 106 | 9.4 x 10-6 | 8.7 | 0.12 | 27.6 x 10-6 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Stainless Steel 202 Hex Bar and Rod is commonly used in manufacturing hardware, fasteners, and structural components. It finds applications in industries such as automotive, construction, food processing, and chemical equipment. Its resistance to corrosion and durability makes it ideal for components exposed to harsh environments, including marine and architectural applications, as well as in the production of machinery.
Stainless Steel 202 Hex Bars and rods are manufactured through processes like extrusion, forging, and cold drawing. The metal is heated, shaped, and then cooled to achieve desired dimensions. This process ensures uniformity, strength, and surface finish. Quality control during each stage guarantees durability, corrosion resistance, and precise tolerances in the final product.
Yes, Stainless Steel 202 Hex Bar/Rod can be welded easily using techniques like TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding. Preheating and proper filler materials are recommended to avoid cracking and maintain weld integrity.
Stainless Steel 202 Hex Bar/Rod finds extensive use across industry sectors because of its hardness, affordability, and workability. It finds widespread usage in the fabrication of railings, architectural structures, and ornamental applications. The bar finds excellent application in machinery parts, automobile applications, and general fabrication. Apart from this, it is also used in kitchen appliances, furniture frames, and light industrial purposes. Through its combination of functionality and cost-effectiveness, Rupal Metals’ Stainless Steel 202 Hex Bar/Rod satisfies the needs of customers looking for durable material for both usability and looks.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
