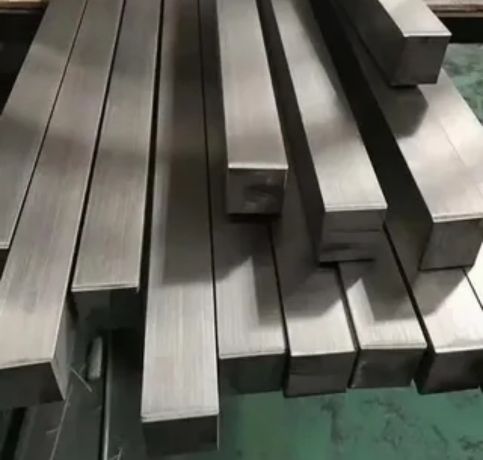

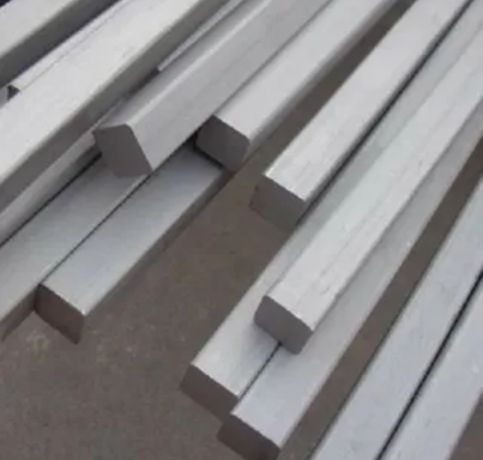

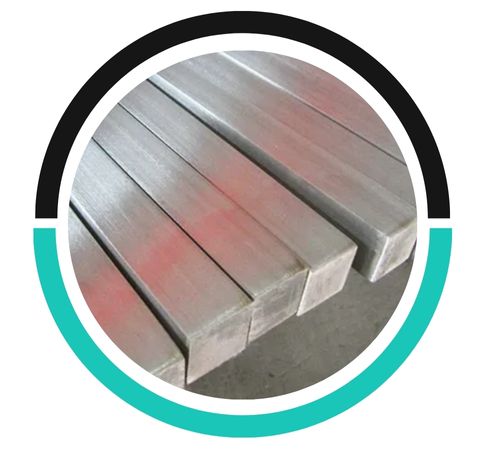

Rupal Metals, being a renowned Delhi-based manufacturing and supplying company, is a specialist in providing high-quality Stainless Steel 316 Square Bars/Rods to various industries. Rupal Metals is known for its dedication to precision and durability and supplies products that are up to global standards in quality and performance. Their 316 Stainless Steel Square Bars/Rods are made from sophisticated technologies and the finest raw material to provide resistance against corrosion, tensile strength, and good machinability. Rupal Metals has created a reliable name in the stainless steel manufacturing industry in India through strong emphasis on customer satisfaction, competitive prices, and punctual delivery.
Stainless Steel 316 Square Bars/Rods consist mainly of chromium (16–18%), nickel (10–14%), molybdenum (2–3%), manganese, silicon, and minute amounts of carbon and iron as the main base. They have superior corrosion resistance in environments that are chloride-rich and marine environments. They have a tensile strength of approximately 515 MPa, a yield strength of 205 MPa, and good ductility. The addition of molybdenum makes them more pitting and crevice-resistant. Their excellent strength, formability, and weldability are the reasons why they find applications in high-performance and corrosive services.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M

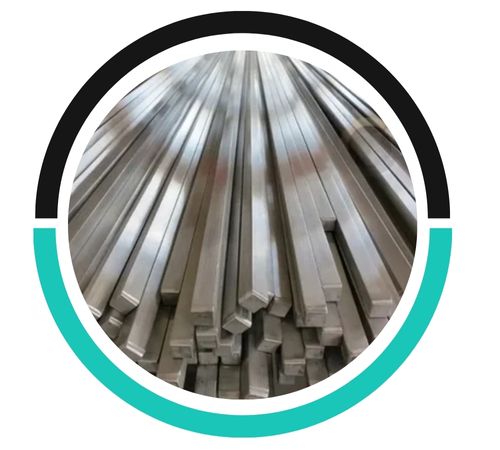

Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 316 | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 0.03 max | 0.75 max |
| Element | Density, lb/in3 | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | – | – | 515 Min | 205 Min | 40% Min |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 316 square bars are resistant to galvanic corrosion when used in environments with similar metals. However, when coupled with dissimilar metals, they can be susceptible to galvanic corrosion if exposed to electrolytes.

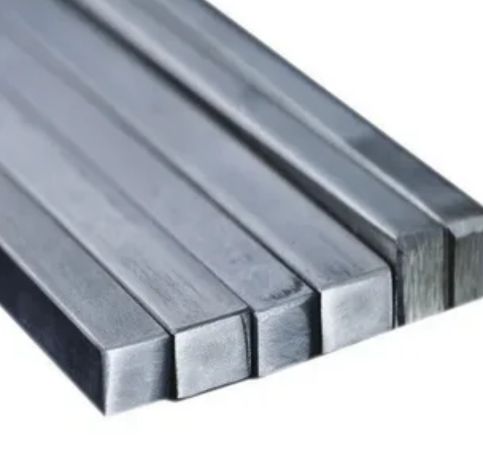

Stainless Steel 316 square rods are available in various sizes ranging from 1/8" to 6" or more, depending on the supplier. They are typically offered in finishes such as mill, polished, or brushed, based on customer requirements.
Yes, Stainless Steel 316 square bars are highly resistant to corrosion, making them suitable for underground applications. Their durability and resistance to rust make them ideal for use in harsh environments.
316 Square Bars/Rods of Stainless Steel are used in various industries on a large scale because of their high corrosion resistance and strength. They are critical in the marine environment, chemical and petrochemical processing, food and beverage equipment, etc. They possess hygienic properties and are non-reactive, which is why they find application in pharmaceuticals and medical device manufacturing. Moreover, they are utilized in architectural purposes, construction, heat exchangers, pulp and paper mills, and textile machinery. Their strength and durability to withstand high temperatures and chemicals make them a choice for offshore buildings and high-stress applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
