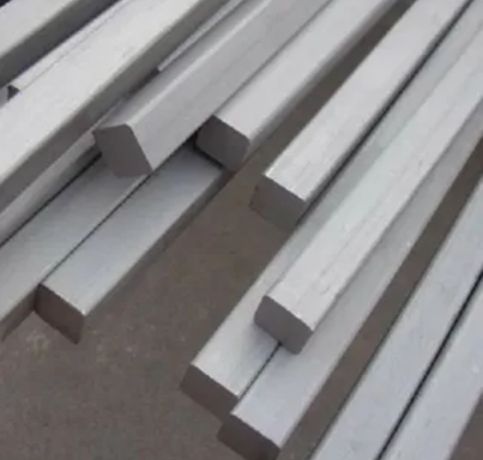

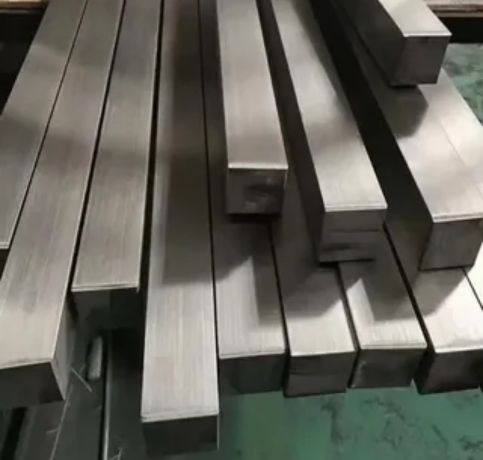

Ojas Pipes and Tubes, a well-known manufacturer and supplier located in Kolkata, India, specializes in high-quality Stainless Steel 410 Square Bars and Rods that cater to a variety of industrial needs. These bars are celebrated for their impressive strength, hardness, and resistance to corrosion, making them perfect for both mechanical and structural applications. Ojas is committed to precision manufacturing, rigorous quality control, and timely delivery, whether you need bulk orders or customized solutions. Their 410 stainless steel products are built to perform reliably in conditions with high wear and moderate corrosion, making them a top choice in the automotive, tooling, and engineering industries, both in India and abroad.
Stainless Steel 410 Square Bars and Rods mainly consist of chromium (11.5–13.5%) along with low carbon content (~0.15%) and small amounts of manganese, silicon, phosphorus, and sulfur. This type of martensitic stainless steel is known for its excellent strength and hardness, paired with moderate corrosion resistance. It boasts a tensile strength ranging from 480 to 650 MPa, a minimum yield strength of 270 MPa, and an elongation of about 20%. Heat treatment can further enhance its hardness and mechanical properties. Notably, 410 stainless is magnetic in both its annealed and hardened states and can be machined or welded with the right precautions.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 410 | 0.15 | 11.5-13.5 | 1.00 | 0.75 | 0.040 | 0.030 | 1.00 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50 mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed * | 480 min | 275 min | 16 min | – | – |
| 204 | 1475 | 1005 | 11 | 400 | 30 |
| 316 | 1470 | 961 | 18 | 400 | 36 |
| 427 | 1340 | 920 | 18.5 | 405 | # |
| 538 | 985 | 730 | 16 | 321 | # |
| 593 | 870 | 675 | 20 | 255 | 39 |
| 650 | 300 | 270 | 29.5 | 225 | 80 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 410 | 1.4006 | S41000 | SUS 410 | 410S21 | – | – | 56A |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 410 square bars can be welded, but preheating and post-weld heat treatment are often recommended to avoid cracking. Proper welding techniques ensure strong, durable joints.
To ensure the quality of Stainless Steel 410 square bars, source them from reputable suppliers and conduct material testing, such as tensile strength and hardness tests. Additionally, check for proper surface finish and dimensional accuracy.
Yes, we provide 410 Stainless Steel Square Bars and Rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@rupalmetals.com
Stainless Steel 410 Square Bars and Rods find extensive use in automotive parts, pump shafts, valve components, kitchen utensils, and cutlery, thanks to their durability and mechanical strength. They are also employed in petrochemical equipment, steam and gas turbine blades, and various mechanical engineering tools where strength and moderate corrosion resistance are essential. Perfect for applications that require hardening and tempering, 410 stainless steel performs admirably in mildly corrosive environments such as fresh water, steam, and light chemical exposure. It’s a cost-effective option for situations where extreme corrosion resistance isn’t critical, but mechanical performance is key.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
