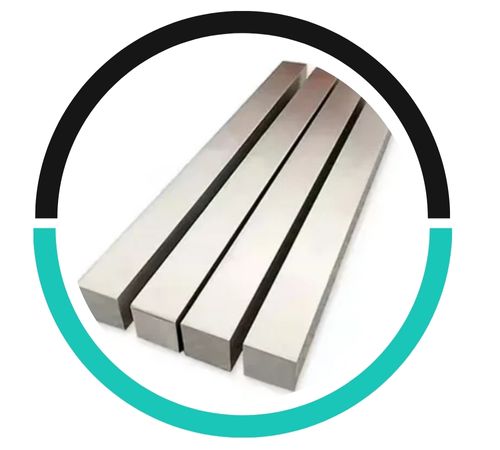

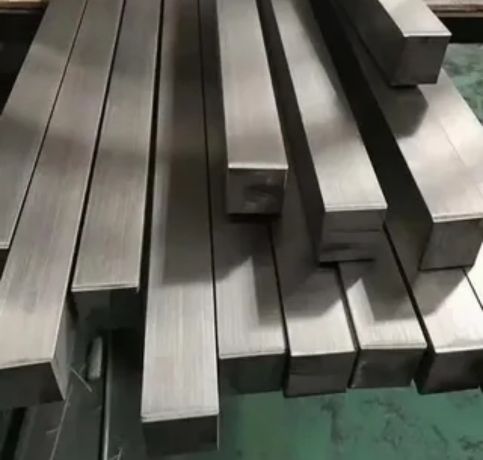

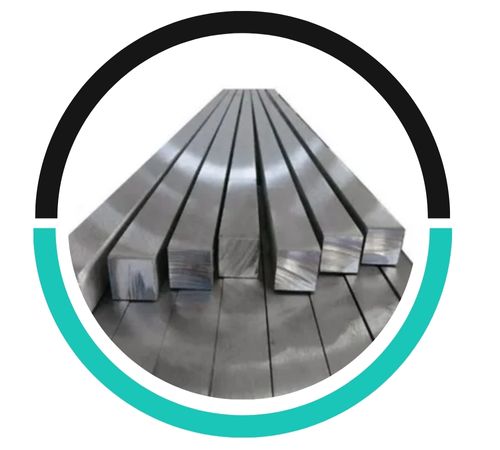

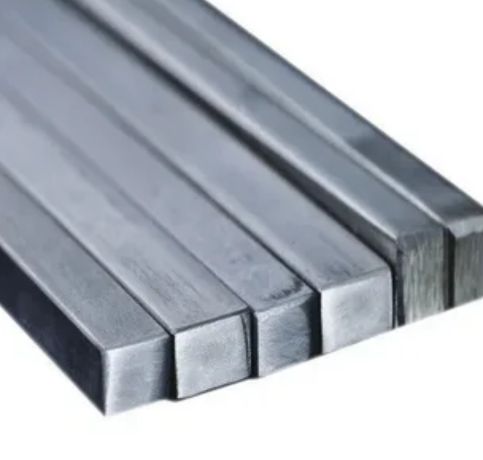

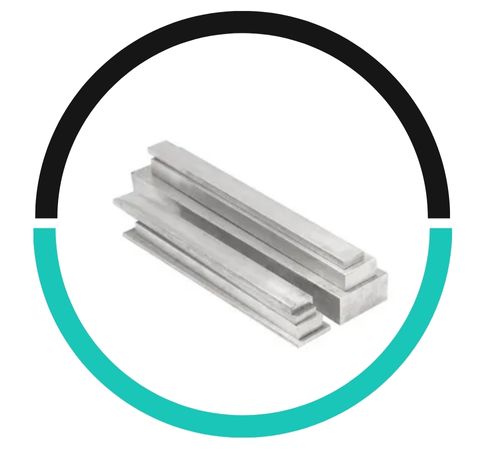

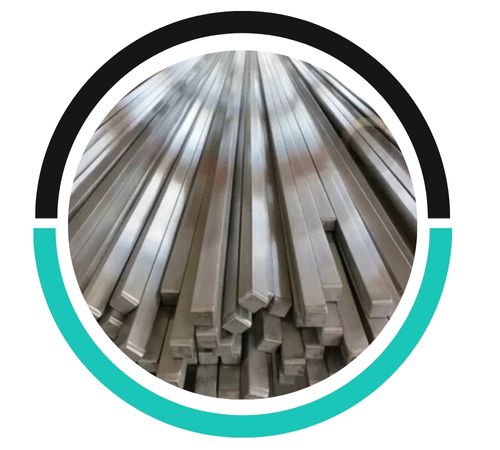

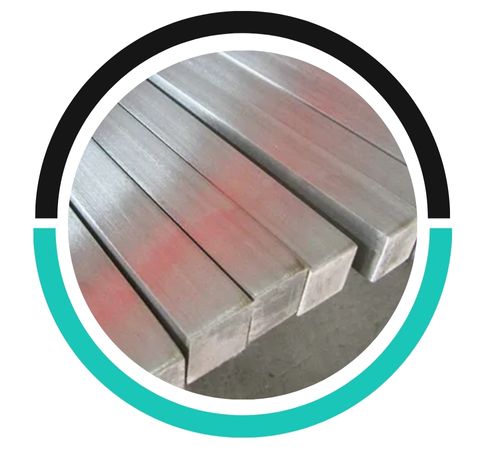

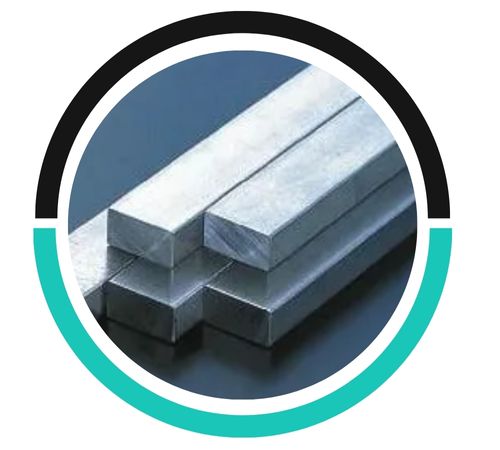

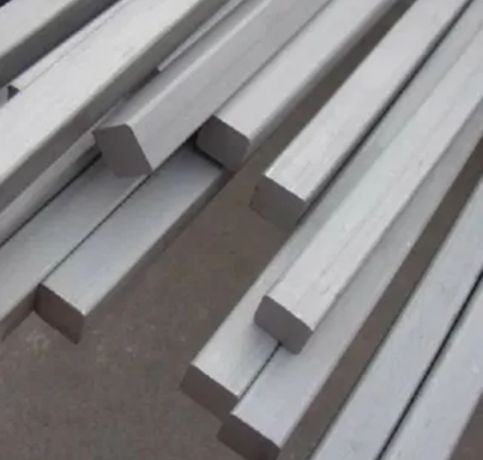

We are a renowned Delhi-based manufacturer and supplier of high-quality Stainless Steel 416 Square Bars/Rods. With years of experience in the industry, we strive to provide high-performance stainless steel products that satisfy the high standards of different sectors of industries. Our stainless steel 416 square bar and stainless steel 416 rod are manufactured with precision using cutting-edge manufacturing processes to provide superior surface finish and fine machinability. We provide our services to a wide variety of customers throughout India and abroad, recognized for our prompt delivery, reasonable prices, and commitment to quality assurance in all products we deliver.
Stainless Steel 416 Square Bars/Rods are free-machining martensitic stainless steels containing mostly Chromium (12-14%), Carbon (0.15%), Manganese, Silicon, Sulfur (0.15 min), and trace amounts of elements such as Phosphorus. They have good machinability, magnetic characteristics, and fair corrosion resistance. The mechanical features are tensile strength of about 540 MPa, yield strength of about 275 MPa, and elongation of 20% in 50 mm. The hardness varies between 170 and 255 HB based on heat treatment. They have the mechanical features that suit SS 416 for applications demanding strength, machinability, and resistance to mild corrosive environments.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 416 | 1.4005 | S41600 | SUS 416 | 416S21 | – | – | X12CrS13 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 416 square bars are susceptible to galvanic corrosion when in contact with more noble metals, such as copper or brass, in the presence of an electrolyte. Proper insulation and material selection can help mitigate this risk.
Yes, we provide 416 Stainless Steel Square Bars and Rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@rupalmetals.com
Stainless Steel 416 square rods are available in various sizes, typically ranging from 1/4" to 6" in width. They come in finishes like cold-finished, hot-rolled, or polished, depending on the application requirements.
Stainless Steel 416 Square Bars/Rods are among the popularly used materials in various industries because of their good machinability and average corrosion resistance. Shaft manufacturing, fasteners, gears, valves, and pump components are some common applications where they are used, especially in the automotive and aerospace sectors. For electrical use, their magnetic qualities also make them usable. When it comes to food processing and making chemical equipment, SS 416 is preferred where the components are not exposed to heavily corrosive environments. Besides, it is used in precision-machined components, screws, and studs where tight tolerances and fine finishes are critical. These bars provide the best balance of performance and economy.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
