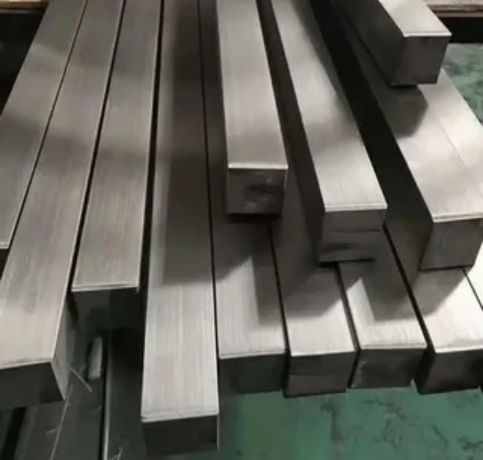

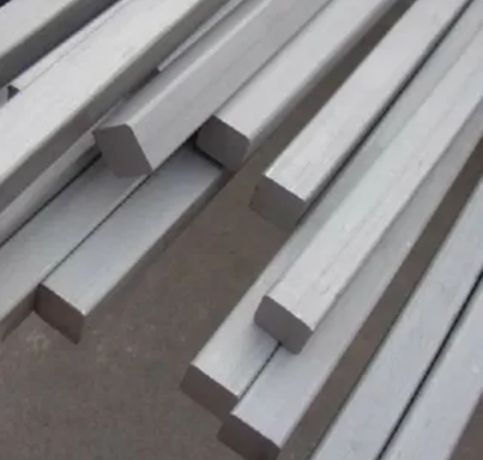

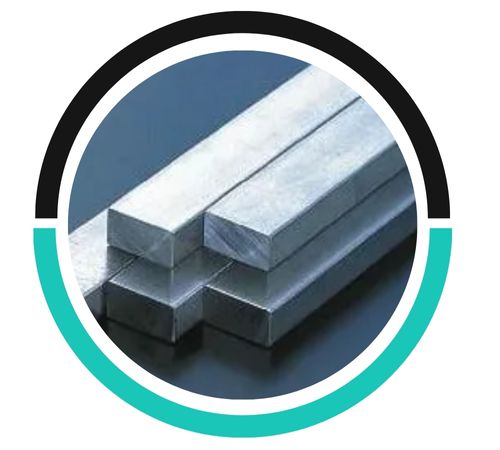

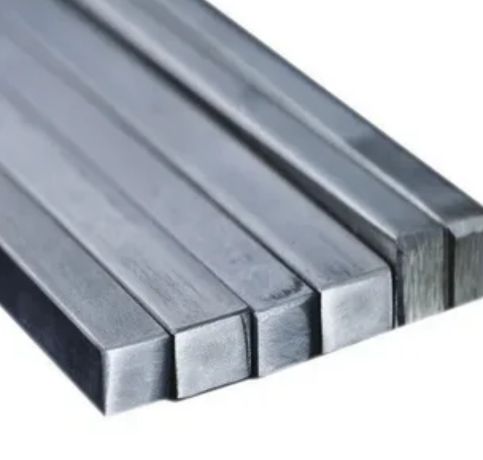

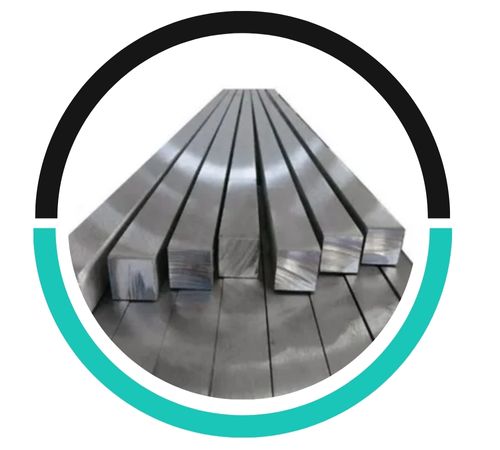

Rupal Metals is a prominent manufacturer and supplier company in Delhi, India, dealing in high-quality Stainless Steel 430 Square Bars and Rods. Known for their professionalism and reliability, Rupal Metals meets varied industrial requirements with finely engineered products. Our Stainless Steel 430 Square Bars/Rods are produced through the latest technology to provide excellent strength, toughness, and corrosion resistance. With clients from different industries trusting us, we uphold rigorous quality control processes to deliver assured materials that are on par with international standards, and in doing so, Rupal Metals becomes an industry choice.
Stainless Steel 430 is a ferritic stainless steel with a major component of 16-18% chromium and minimal carbon content (up to 0.12%), together with minute amounts of manganese, silicon, and phosphorus. With this composition, they provide superior resistance to corrosion and adequate formability. Mechanically, Stainless Steel 430 Square Bars/Rods possess a moderate tensile strength of around 450 MPa with a yield strength of about 275 MPa. The material possesses a hardness of about 70 HRB and is both tough and resistant to oxidation, and it can be used in applications demanding moderate strength as well as corrosion resistance.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M

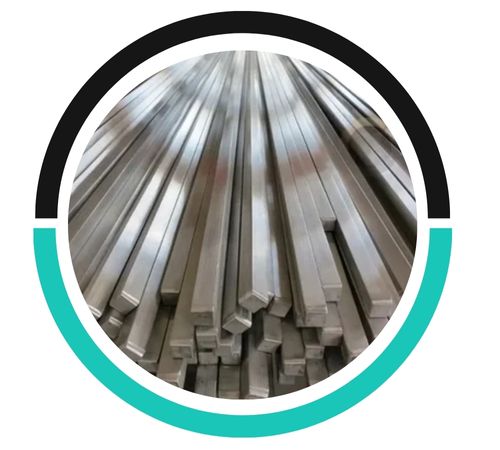

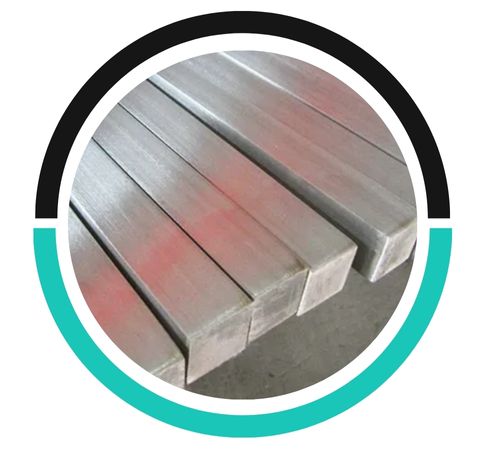

Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 430 | 0.12 | 18.0 | 1.25 | – | 0.06 | 0.15 | 1.00 |
| Element | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell (HB) max) |
| SS 430 | 552 | 379 | 25 | 262 |
| STANDARD | WERKSTOFF NR. | UNS | JIS |
| SS 430 | 1.4104 | S43020 | SUS 430 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 430 Square Bars are not ideal for underground applications due to their susceptibility to corrosion in aggressive environments. For such uses, higher corrosion-resistant alloys like 316 or 304 stainless steel are recommended.
Yes, we provide 430 stainless steel square bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@rupalmetals.com
Yes, Stainless Steel 430 Square Bars are magnetic. This is because they are made of ferritic stainless steel, which contains a high proportion of iron.
Stainless Steel 430 Square Bars/Rods by Rupal Metals find extensive applications across different sectors such as automotive, construction, kitchen appliances, and architectural works. Due to their superior corrosion resistance, they are best suited for the production of decorative trims, exhaust systems, and kitchen utensils. They are applied in industrial equipment, heat exchangers, and chemical tanks where moderate strength and corrosion resistance are required. The magnetic properties of the material and excellent weldability also qualify it for producing electrical appliance and machine parts, and ensuring sustained performance and durability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
