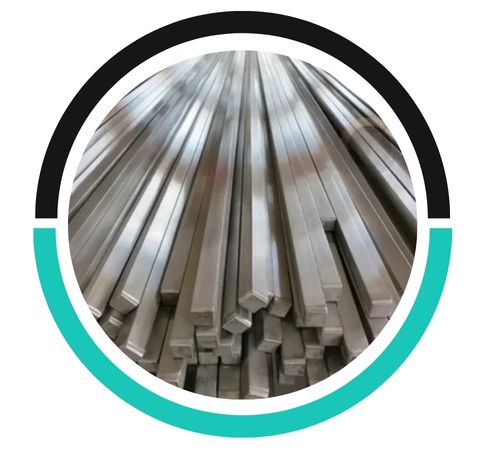

Chromium (19–23%), Nickel (23–28%), Molybdenum (4–5%), Copper (1–2%), and low carbon content (<0.02%) make up stainless steel 904L square bars and rods. Outstanding corrosion resistance is provided by this special composition, particularly against phosphoric and sulphuric acids. Mechanical characteristics include a 35% elongation, a yield strength of 220 MPa, and a tensile strength of roughly 490 MPa. The alloy is perfect for harsh industrial settings because it also has outstanding toughness, weldability, and resistance to stress corrosion cracking.
| Specifications | : | ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 904L Square Bars | : | Outside Diameter in the range of 4mm to 500mm |
| SS 904L Square Bars | : | 18mm ” 47mm (11/16″ to 1-3/4″) |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | : | 1 to 6 Meters, Custom Cut Lengths |
| Form | : | Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| SS 904L | Min | – | – | – | – | – | 19 | 4 | 23 | 1 |
| Max | 0.02 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 2 |
| Grade | Tensile strength (MPa) | Yield Strength 0.2% Proof(MPa) | Elongation (% in 50mm) | Hardness – Brinell |
| 904L | 490 | 220 | 36 | 70-150 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | EN | EURONORM NAME |
| SS 904L | 1.4539 | N08904 | – | 904S13 | – | X1NiCrMoCuN25-20-5 |
| SQUARES | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, we provide stainless steel 904L square bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@rupalmetals.com

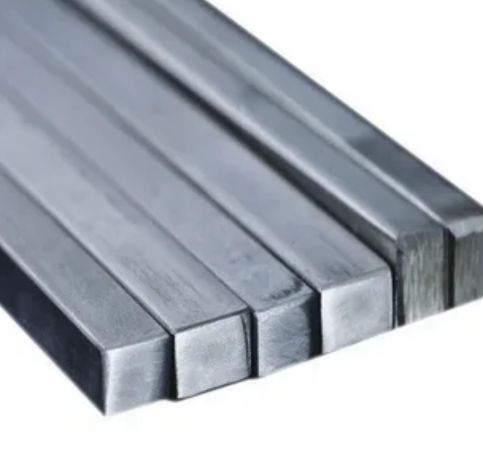

Stainless Steel 904L Square Rods are known for their exceptional corrosion resistance, high strength, and excellent weldability, making them ideal for harsh environments. They also exhibit good formability, durability, and resistance to pitting and crevice corrosion.
Yes, Stainless Steel 904L Square Bars can be recycled after use. Their high nickel and chromium content make them valuable for recycling, reducing waste and conserving resources.
Industries that demand exceptional resistance to corrosive environments and harsh chemicals frequently use stainless steel 904L square bars and rods. They are widely used in pharmaceutical equipment, gas scrubbing systems, and chemical and petrochemical processing. These bars are ideal for offshore structures and ship components because of their exceptional resistance to corrosion caused by seawater and chloride stress in marine environments. They are also utilised for structural reinforcement in construction, the paper and pulp industries, and heat exchangers. They are a dependable option for demanding and high-performance applications due to their exceptional mechanical strength and resistance to corrosion.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
