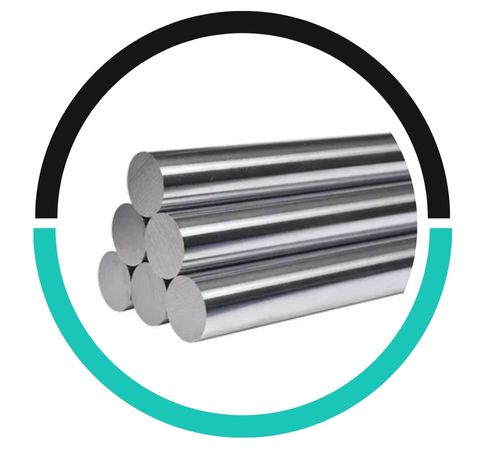

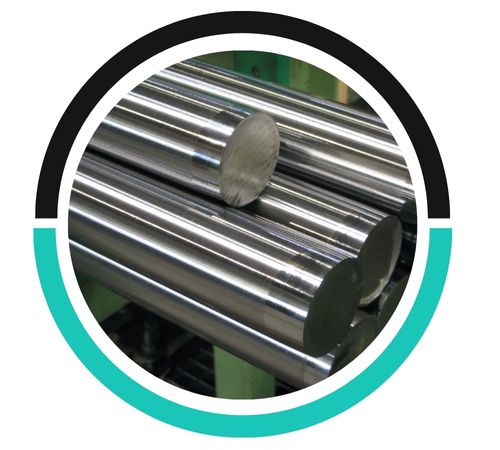

Ojas Pipes and Tubes, a well-respected name in Kolkata, India, stands out as a top manufacturer and supplier of Stainless Steel 304 Round Bars and Rods. Our SS 304 products are celebrated for their exceptional corrosion resistance, impressive formability, and dependable performance across a variety of industrial settings. Crafted from high-quality raw materials and utilizing advanced manufacturing techniques, our round bars and rods adhere to international quality standards, making them perfect for both everyday use and high-stress applications. With a strong focus on quality, precision, and timely delivery, Ojas Pipes and Tubes has earned a solid reputation in numerous sectors.
Stainless Steel 304 Round Bars and Rods are made up of about 18% chromium and 8% nickel, providing remarkable corrosion resistance and excellent welding capabilities. They boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40% over 50mm. SS 304 is known for its impressive toughness, even at cryogenic temperatures, and can handle moderately oxidizing and reducing environments. Its non-magnetic properties in annealed conditions and strong mechanical strength make it a great choice for fabrication and machining across various industries.
| Specifications | ASTM A 276 / SA 276 |
|---|---|
| Dimensions | ASTM, ASME |
| Range | 3.17 MM TO 350 MM DIA |
| Diameter | 25mm to 152m |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 304 | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0-20.0 | – | 8.0-10.5 | 0.10 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
|
Type |
SIZES (Inches) |
ISO Tolerance |
SIZES (mm) |
|---|---|---|---|
|
Peeled and Polished |
1.50″ to 6.00″ |
h11-DIN 1013 |
40.00 to 150.00 |
|
Cold Drawn and Ground |
5/6″ to 2.50″ |
h9-h8-h11-h10 |
10.00 to 75.00 |
|
Cold Drawn and Polish |
1/8″ to 3.00″ |
h9-h8-h11-h10 |
3.00 to 75.00 |
|
Peeled and Ground |
3/4″ to 2.00″ |
h10-h9-h11 |
20.00 to 50.00 |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
We supply a wide range of 304 Stainless Steel Bars and Rods, including round bars, square bars, hexagonal bars, flat bars, hollow bars, and rectangular bars. These products are available in various sizes and shapes to meet the diverse needs of different industries.
Rupal Metals is a leading manufacturer and supplier of premium-quality Stainless Steel 304 Bars and Rods, catering to industrial, commercial, and personal needs across the India and worldwide.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@rupalmetals.com
Stainless Steel 304 Round Bars and Rods find extensive use in automobile components, chemical processing equipment, food and beverage machinery, architectural structures, and pharmaceutical manufacturing. They are perfect for applications like shafts, fasteners, heat exchangers, kitchen equipment, and marine fittings due to their corrosion resistance and high strength. The hygienic properties of SS 304 make it especially suitable for medical instruments and food-grade applications. Ojas Pipes and Tubes guarantees that these round bars and rods are delivered with precise dimensions and a high-quality surface finish, designed to perform efficiently in challenging environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Rupal Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Delhi, India
