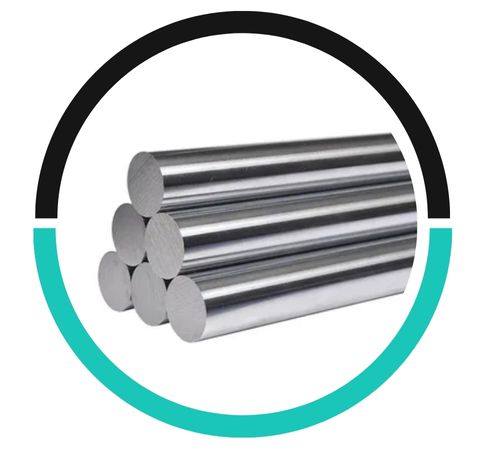

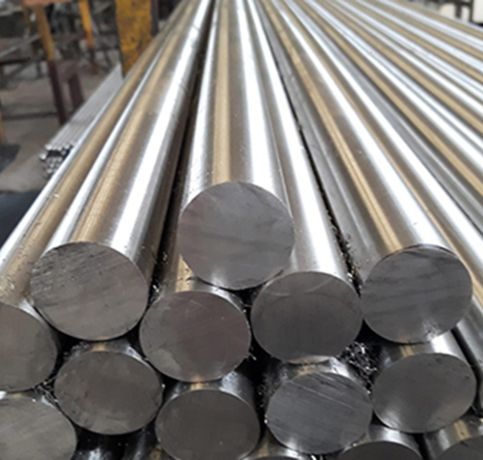

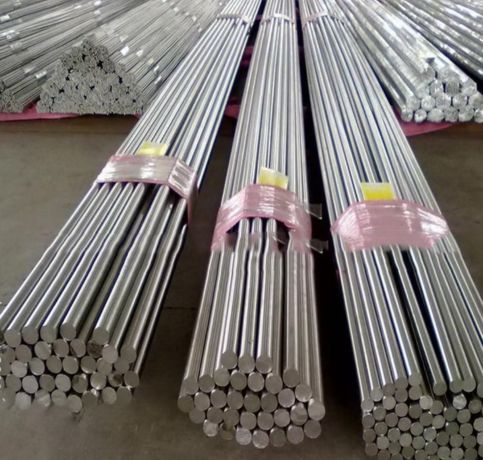

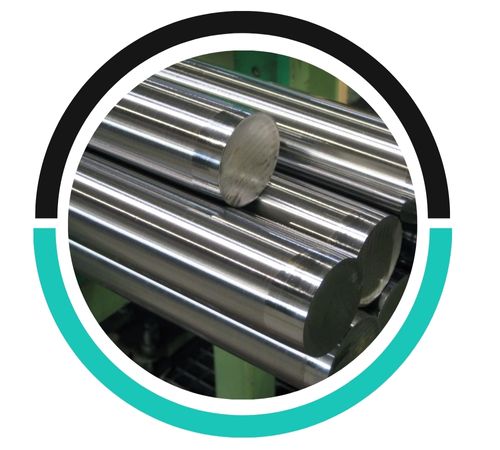

Rupal Metals is a well-known Delhi-based manufacturer and supplier of high-quality Stainless Steel 316Ti Round Bars and Rods. Rupal Metals is committed to precision engineering and high performance, and hence, it supplies these stabilizing stainless steel products containing titanium, which provide excellent corrosion, high-temperature, and oxidation resistance. These round bars and rods are used in a variety of industries because of their reliability and longevity. Supported by a talented workforce and new-age infrastructure, Rupal Metals provides products that not only live up to national but also international standards, earning them a name to rely upon in the industry of metal manufacturing.
Stainless Steel 316Ti Round Bars/Rods consist mainly of iron, 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and titanium being added to enhance high-temperature stability. The alloy possesses a tensile strength of approximately 515 MPa, yield strength of 205 MPa, and superior elongation of about 35%. It maintains elevated creep and stress rupture resistance, particularly at high temperatures. The addition of titanium also prevents sensitization and enhances weldability, thus being suitable for use in long-term service within aggressive environments.
| Specifications | ASTM A276 / ASME SA276 & ASTM A479 / ASME SA276 |
| Range | 3.17 MM TO 350 MM DIA |
| Dia Meter | 25mm to 152mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |

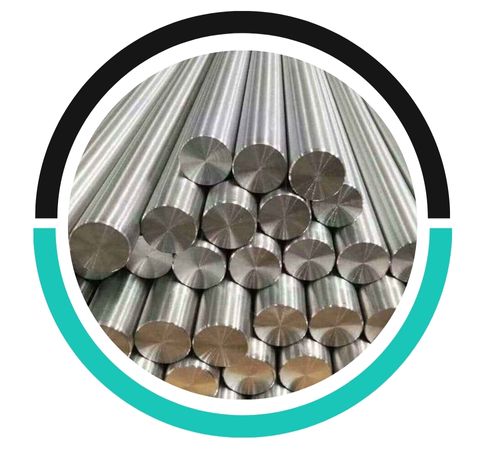

| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging etc |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316TI | min. | – | – | – | – | – | 16.0 | 2.0-3.0 | 10.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | 0.1 | ||
|
Yield Strength
0.2% Proof
(MPa) |
Tensile strength
(MPa)
|
Elongation
(% in 50mm) |
Hardness (HRB) | |
|---|---|---|---|---|
|
MIN |
170 |
485 |
40.00 |
|
|
MAX |
95 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | BS | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 08Ch17N13M2T | 320S31 | Z6CNDT17‐12 | X6CrNiMoTi17-12-2 |
| Density | kg/dm³ | 8 |
|---|---|---|
| Modulus of elasticity | GPa | 200 |
| Thermal conductivity | W/m°C | 15 |
| Heat capacity | J/kg°C | 500 |
| Electrical resistivity | µΩm | 0.75 |
| Poissons ratio | 0.3 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |

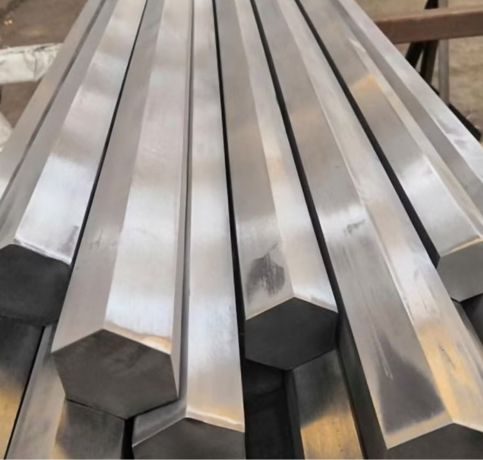

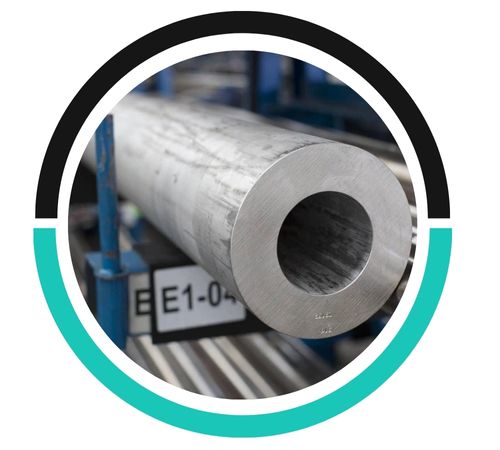

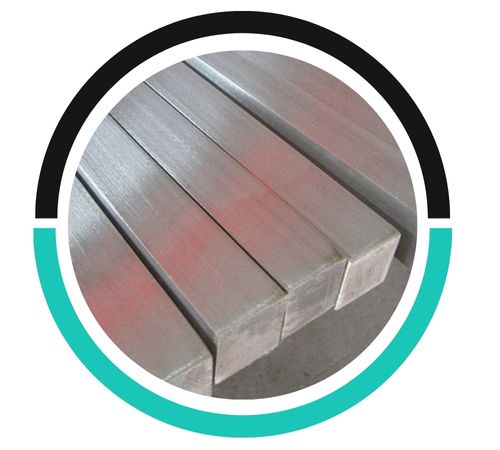

We supply a wide range of 316Ti Stainless Steel Bars and Rods, including round bars, square bars, hexagonal bars, flat bars, hollow bars, and rectangular bars. These products are available in various sizes and shapes to meet the diverse needs of different industries.
Rupal Metals is a leading manufacturer and supplier of premium-quality Stainless Steel 316Ti Bars and Rods, catering to industrial, commercial, and personal needs across the India and worldwide.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@rupalmetals.com
Stainless Steel 316Ti Round Bars/Rods have extensive applications in chemical processing, marine engineering, food and beverage, pharma, and power generation industries. They are well suited for use in heat exchangers, pressure vessels, condensers, pipelines, and structural components subject to corrosive environment. The titanium addition provides resistance to intergranular corrosion and is well suited for application at elevated temperatures as well as welding application. Their pitting and crevice corrosion resistance, strength, and endurance make them the equipment of choice for equipment functioning in aggressive and corrosive environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
