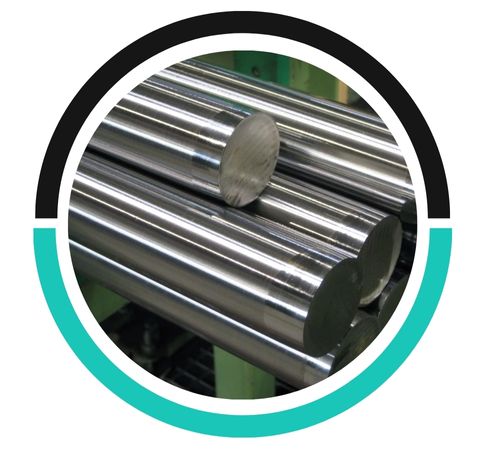

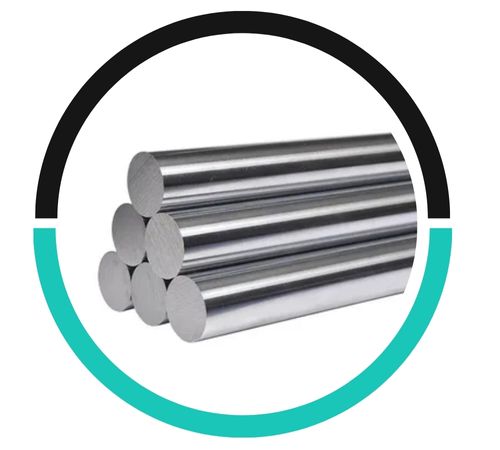

Rupal Metals is a premier manufacturer and supplier company in Delhi, India, with expertise in high-quality Stainless Steel 317L Round Bars and Rods. Known for their dedication to excellence and precision, Rupal Metals provides products to suit various industrial requirements with strict international standards. The Stainless Steel 317L Round Bars and Rods by Rupal Metals have high corrosion resistance, durability, and mechanical strength, best suited for high-end applications. With a strong distribution network and professional technical assistance, Rupal Metals provides prompt delivery and exceptional customer satisfaction in multiple industries.
317L Stainless Steel Round Bars and Rods are mainly alloyed with iron, chromium (18-20%), nickel (11-15%), and molybdenum (3-4%), to increase corrosion resistance, particularly against chlorides. The ‘L’ signifies low carbon content (max 0.03%), which minimizes carbide precipitation and is better suited for weldability. Mechanically, 317L has very good tensile strength (around 515 MPa) and yield strength (around 205 MPa), with fair elongation (35%). Its higher toughness and resistance to crevice corrosion and pitting allow it to be used in aggressive chemical environments and high-temperature conditions.
Standard : 317L / 1.4438
Range : 3.17mm to 350mm dia
Designation : ASTM A276, ASME SA276
Finish : Bright, Black, Polish
Thickness: 4.0mm – 100mm
Type: Bar, Bright Bar, Black Bars, Hex Bar, Square Bar, Rods, Polish Bar, Forged Bar, Round Bar
Length : Random, Fix & Cut Length
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Weight (kg/ft) | 0.20 | 0.50 | 0.30 | 0.69 | 0.60 | 1.50 | 1.00 |
|---|---|---|---|---|---|---|---|
| Size(mm) | 10 x 10 | 14 x 14 | 12 x 12 | 17 x 17 | 16 x 16 | 25 x 25 | 20 x 20 |
| Weight (kg/ft) | 2.40 | 4.22 | 3.80 | 6.72 | 0.60 | 9.50 | 7.50 |
| Size(mm) | 32 x 32 | 42 X 42 | 40 x 40 | 53 X 53 | 50 x 50 | 63 x 63 | 56 x 56 |
| Standard | SS 317L |
| UNS | S31703 |
| WERKSTOFF NR. / DIN | 1.4438 |
Stainless Steel 317L Round Bars and Rods are extensively used in applications that demand high strength and corrosion resistance. Typical applications are in chemical processing equipment, seawater environments, heat exchangers, and pollution control equipment. The alloy’s resistance to corrosion from chlorides is particularly suited for use in seawater and acid environments. 317L bars and rods also find extensive applications in pharmaceutical and food processing equipment, where cleanliness and resistance to corrosion are paramount. Their superior weldability and mechanical properties are also suitable for architectural applications, structural uses, and high-temperature conditions for power plants and petrochemical industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
